E-Frame Trailer consists of E Frame and material trailer, material trailer carry materials, E Frame carry material trailer. Commonly used in warehouse and material distribution in workshop. Usually short-distance material distribution can be achieved through material trailer, long-distance material distribution is achieved by the combination of tractors, E Frame and material trailer. E-Frame trailer has the advantages of small turning radius, low manpower and equipment investment, low maintenance costs, high handling efficiency, and high safety performance.
| Type | Capacity | Length | Width | Height of Working Platform | Working Space AxB | Unit Size W2 | Wheelbase | Distance Between the Wheels | Turning Radius | Unit Weight |
| (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| ZYC10B-001 | 1000 | 3500 | 1290 | 322 | 1340x1055 | 624 | 1873 | 893 | 3000 | 300 |

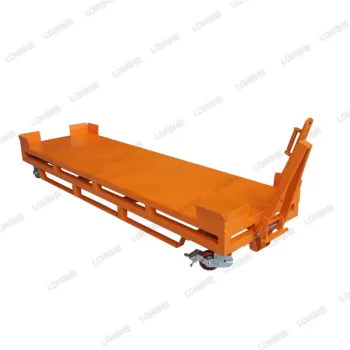

Material Trailer
| Type | Capacity | Length | Width | Height | H1 | AxB | L1 | W1 | Unit Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| WLC05A-001 | 500 | 1280 | 683 | 990 | 311 | 620x1160 | 869 | 410 | 105 |
| WLC10A-001 | 1000 | 1300 | 1336 | 1000 | 311 | 1240x1180 | 869 | 1125 | 130 |
| WLC10A-002 | 1000 | 1300 | 1550 | 1000 | 311 | 1540x1180 | 869 | 1125 | 143 |
| WLC10A-003 | 1000 | 1170 | 1336 | 1000 | 311 | 1240x1040 | 869 | 1125 | 126 |
| WLC10A-004 | 1000 | 1340 | 1753 | 1000 | 311 | 1730x1220 | 869 | 1125 | 154 |
| WLC05B-001 | 1000 | 1260 | 1336 | 810 | 311 | 1220x1160 | 869 | 1125 | 200 |
