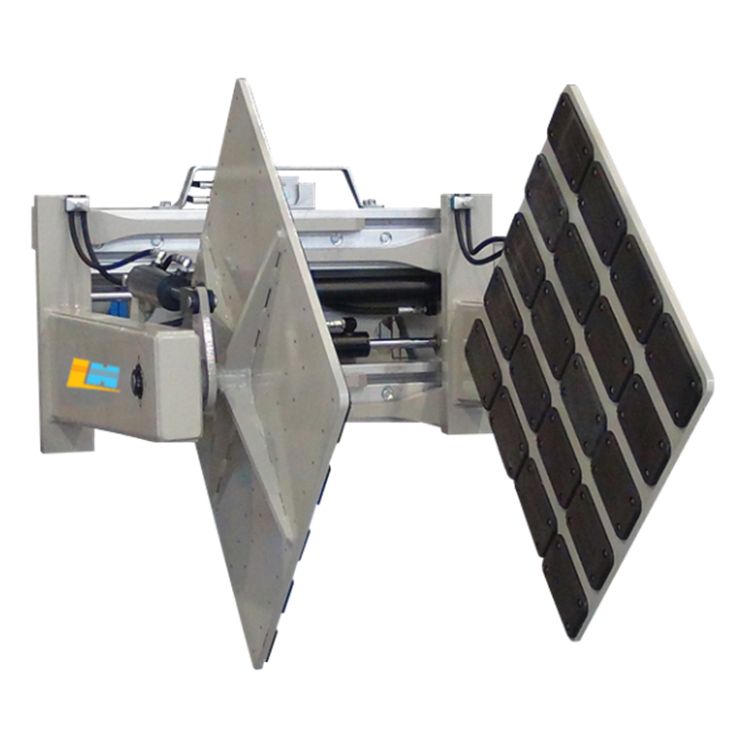

Tipping tobacco carton clamp is design wholly for tobacco carton handling and emptying tasks with high efficiency and safety. Design of lateral sliding arm can lead for smooth clamping and sideshifting. Its small and screwed fastening contact pad can reduce the posibilities of distortion or damaging to loads while handling, and as be worn it can be replaced and reused again in other place of clamp arm. Option of 180° can be available as request.
Functions & Applications
Tobacco carton clamp can handle and stack various goods packed in cartons, especially redried-tobacco cartons, securely and efficiently without working platform. Measurements of clamp arms can be changed as requested in different working conditions. Furthermore, custom design Tobacco Carton Clamp for special working condition in cigarettes factory is available.
Features
● Proven durable T-beam arm and aluminum alloy frame construction
● Superior arm-slide bearing for extended service life
● Small rubber pads design, economically
● Regenerative hydraulic valving for optimal arm speed
● Excellent driver visibility Options
● Custom opening ranges
● Custom arm size
● Various mounting classes available 100%
● Load backrests

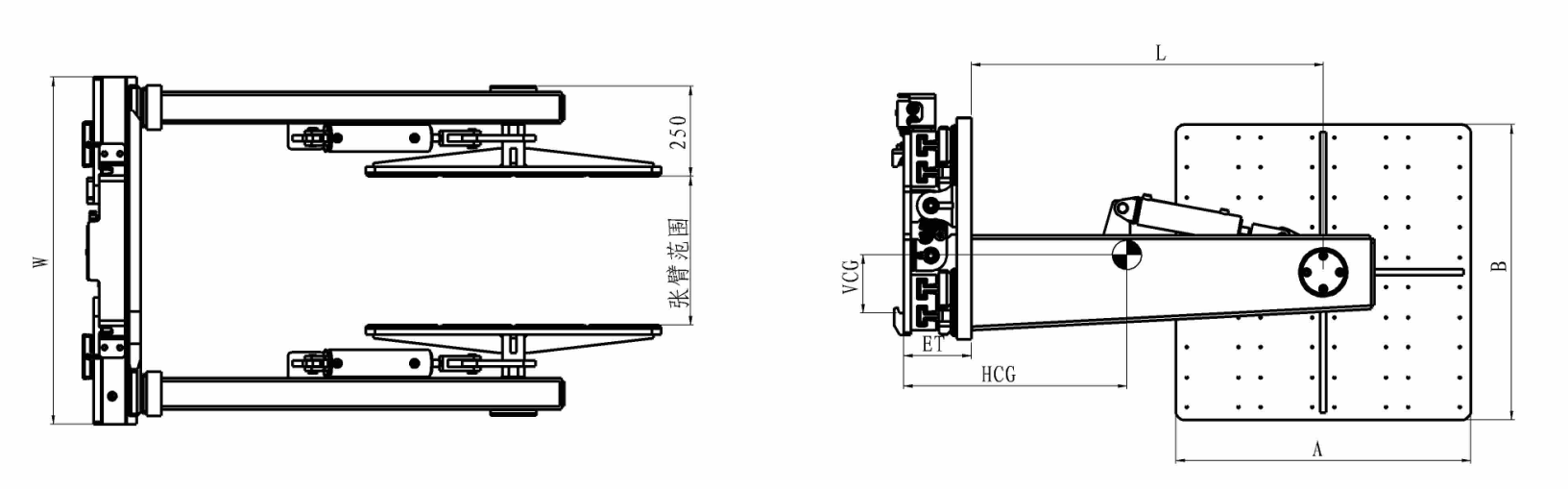

| Capacity@ Load Center | Model | Mounting Class | Opening Range | Arm Length | Frame Width | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | B(mm) | W(mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | ||
| 1400@500 | YYC14E-B001 | II | 230-1390 | 954 | 940 | 158 | 600 | 183 | 605 |
Recommend Hydraulic Flow: 40L/min –120L/min
Pressure: 160 Bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits
3. Opening range refers to distance between arm tips
4. Dimension 250 mm refers to operation space required for arm entering
5. Also available for 180° tippling, only 1 set of solenoid valve kit required
* Further technical details are available upon request
