Stone Fork - Longhe Attachments

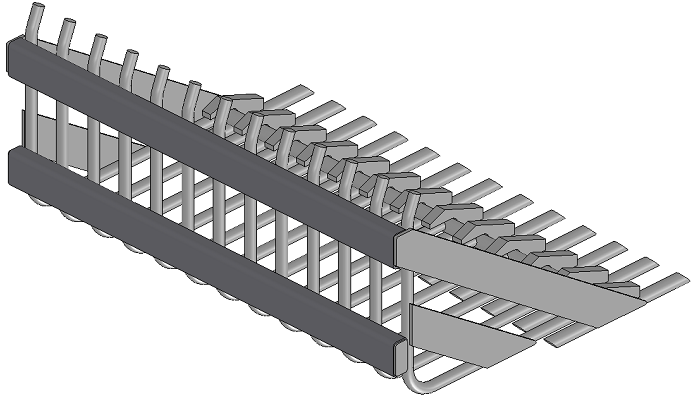

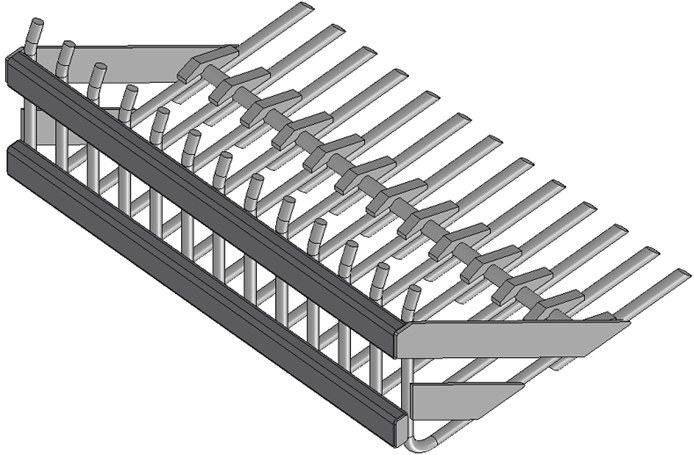

Stone Fork

Powerful and robust construction adapted to high standards of safety and quality. Heavy duty tines are fitted into tapered sockets along the bottom of the frame and also up each side. The stone fork can be fitted to the front or rear of any tractor, telescopic handler or loader.

Powerful and robust construction adapted to today’s high standards of safety and quality.

The bump in the front edge of the stone fork prevents, for example, rock to tear off when shutting off soil or during transport.

For best durability, the horns are made of high-quality steel.

Stone Fork

Model	Capacity	Coupling&Bracket	Width	Length	Fork end Length	Main Steel	Fork end steel	Weight
	(kg)		(mm)	(mm)	(mm)	φ(mm)	φ(mm)	(kg)
STC25E-5882-1350	2500	SMS	1350	1175	270	φ30	φ35	229
STC25E-5887-1350	2500	EURO	1350	1165	270	φ30	φ35	230
STC25E-WGG-1600	2500	Without coupling	1600	1050	270	φ30	φ35	240
STC25E-3827-1600	2500	Triangle	1600	1145	270	φ30	φ35	266
STC25E-AL2-2000	2500	AL2	2000	1170	270	φ30	φ35	316
STC25E-VLLA-2000	2500	VLLA	2000	1170	270	φ30	φ35	328
STC25E-5892-2400	2500	Big BM	2400	1385	270	φ35	φ40	487

Stone Fork

Model	Capacity	Coupling&Bracket	Width	Length	Fork end Length	Main Steel	Fork end steel	Weight
	(kg)		(mm)	(mm)	(mm)	∮(mm)	∮(mm)	(kg)
STC25D-WGG-1350	2500	Without coupling	1350	1050	185	φ30	φ35	223
STC25D-3827-1350	2500	Triangle	1350	1145	185	φ30	φ35	247
STC25D-5882-1600	2500	SMS	1600	1175	185	φ30	φ35	275
STC25D-5887-1600	2500	EURO	1600	1165	185	φ30	φ35	277
STC25D-AL2-2000	2500	AL2	2000	1170	185	φ30	φ35	335
STC25D-VLLA-2000	2500	VLLA	2000	1170	185	φ30	φ35	347
STC25D-5892-2400	2500	Big BM	2400	1185	185	φ30	φ35	411

Note

* Further technical details are available upon request
