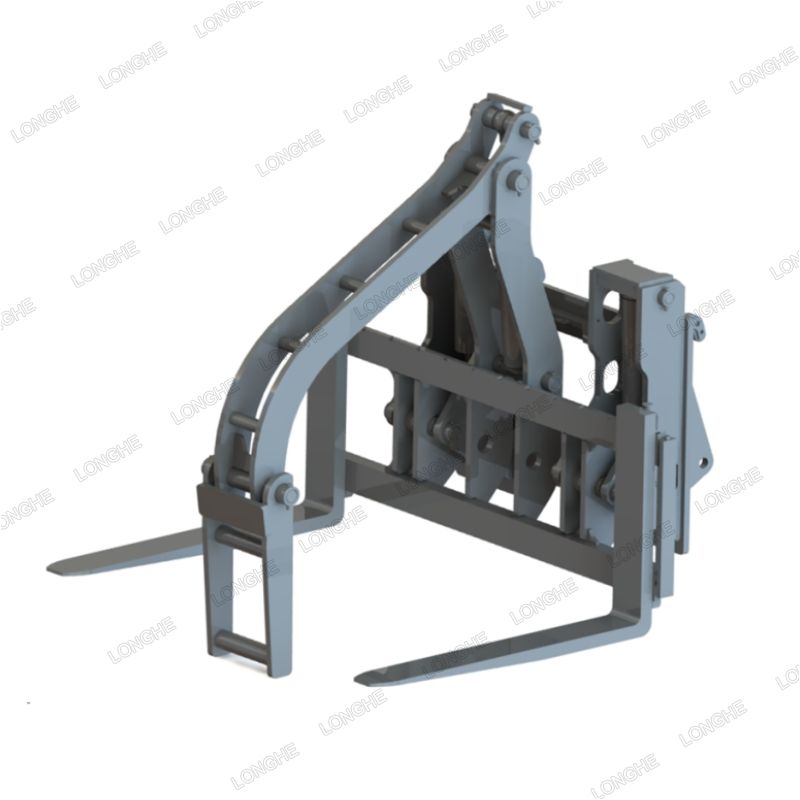

It is an attachment mounted on the loader, usually used for loading, unloading and handling cylindrical items such as steel pipes. It usually consists of a clamping arm, clamping jaw, hydraulic cylinder and control system.
Features:
Strong gripping force: the clamping jaws are usually made of high-strength materials, which can firmly grip cylindrical items such as steel pipes.
Strong adaptability: the clamping arm can be adjusted as needed to accommodate steel pipes of different diameters and lengths.
Hydraulic control: controlled by the hydraulic system of the loader, easy and convenient to operate.
High safety: A safe and reliable design is adopted to avoid accidents during use.
High efficiency: it can quickly grab and carry cylindrical items such as steel pipes, which improves the working efficiency.

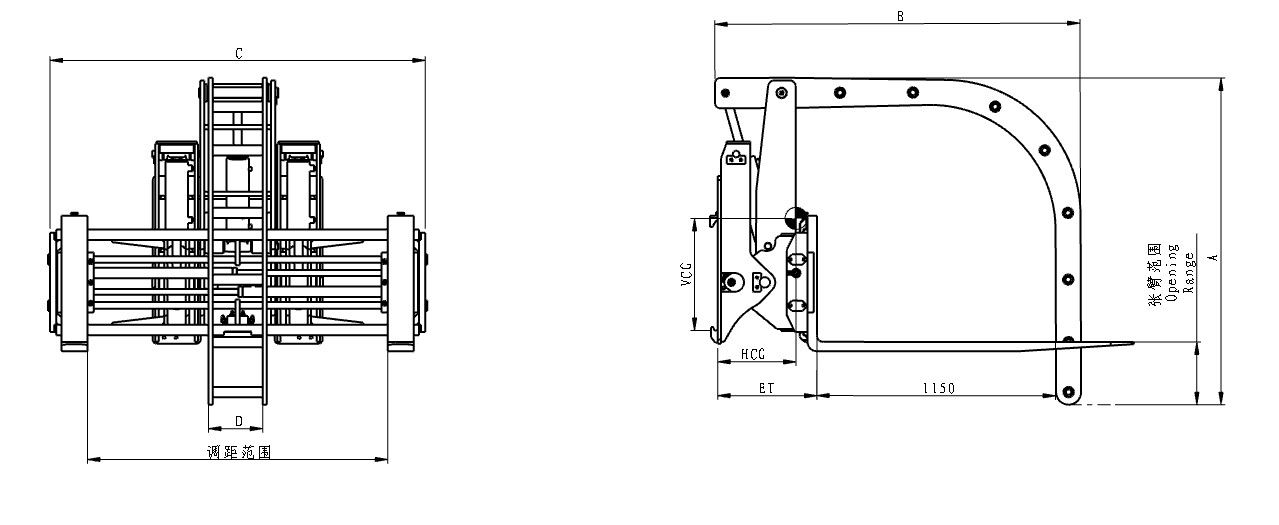

| Capacity@ Load Center | Model | Mounting Class | Tilt Angle -Forks (Up/Dwn ) | Clamp Opening Range | Fork Opening Range | Arm Height | Arm Length | Frame Width | Arm Width | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| 1500@500 | GGC15D-C001 | III | 40°/6° | -180-1540 | / | 1550 | 1750 | 1800 | 60 | 520 | 750 | 446 | 350 |
| 3500@500 | GGC35D-C001 | III | 40°/6° | -190-1410 | 365-1240 | 1550 | 1750 | 1800 | 75 | 538 | 759 | 446 | 376 |
| 4500@500 | GGC45D-C001 | III | 40°/6° | -180-1540 | 365-1640 | 1550 | 1750 | 1800 | 60 | 520 | 750 | 446 | 350 |
| 4500@500 | GGC45D-D001 | IV | 40°/6° | -190-1650 | 365-1640 | 1925 | 1275 | 1800 | 365 | 490 | 1120 | 460 | 448 |
| Hydraulic Flow and Pressure | ||||
| Model | Pressure (Bar) | Hydraulic Flow (L/min) | ||
| Rated | Min | Rec | Max | |
| 12D/15D | 160 | 19 | 38 | 57 |
| 35D/45D | 160 | 30 | 60 | 80 |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. additional hydraulic circuits and 1 set of solenoid valve kits required
3. Available with sideshifting and 1 set of solenoid valve kits required extra
4. Without Forks
* Further technical details are available upon request
