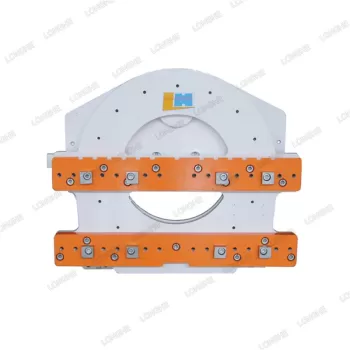

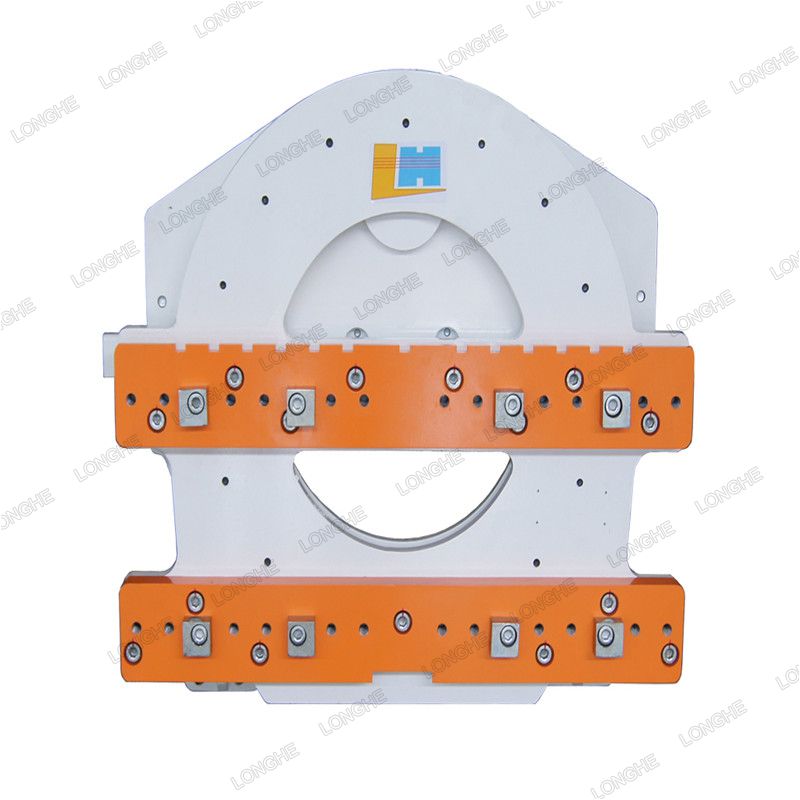

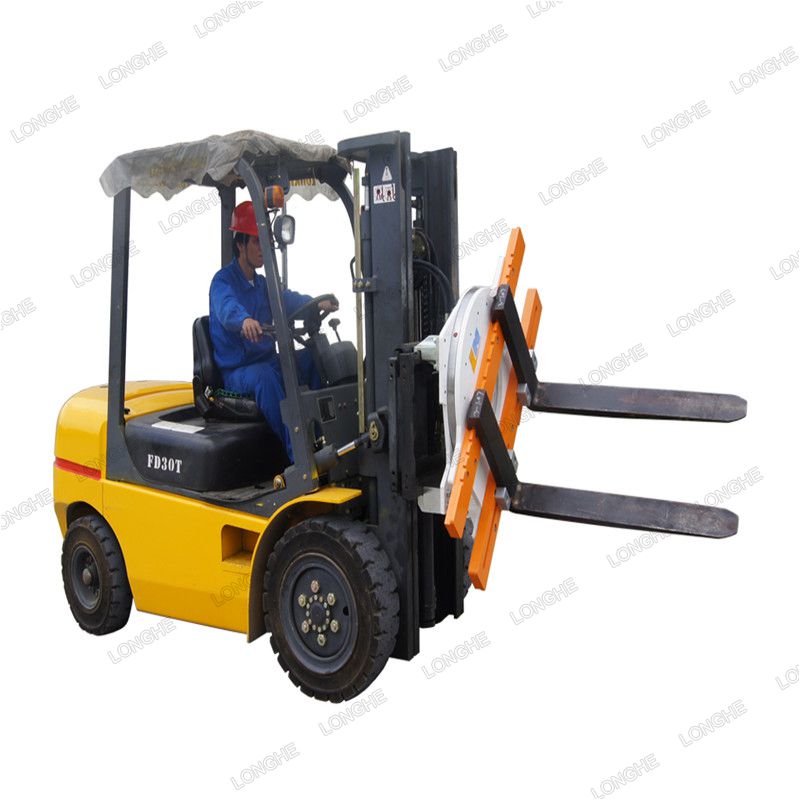

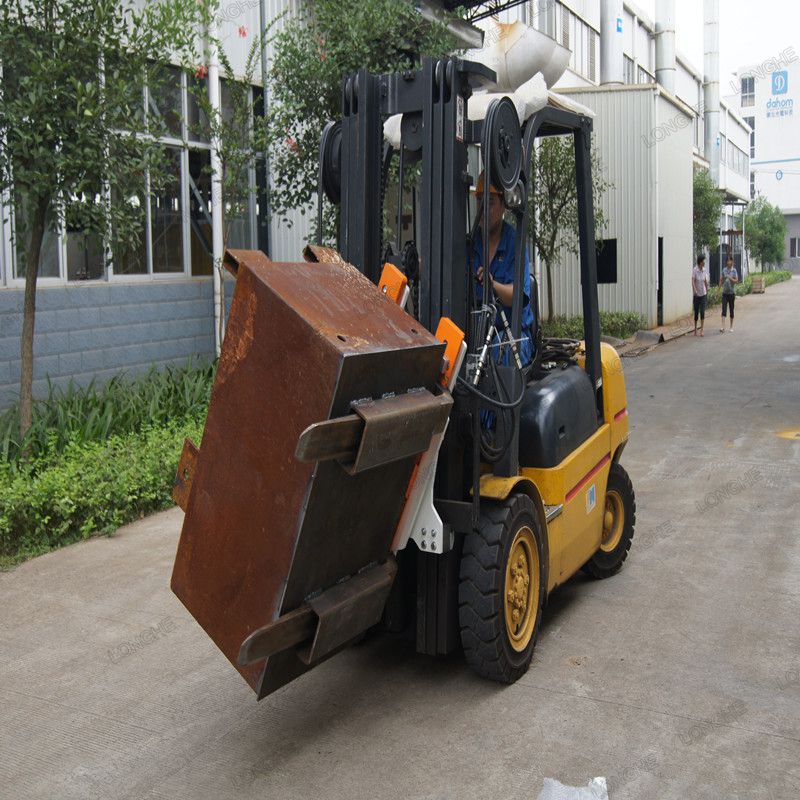

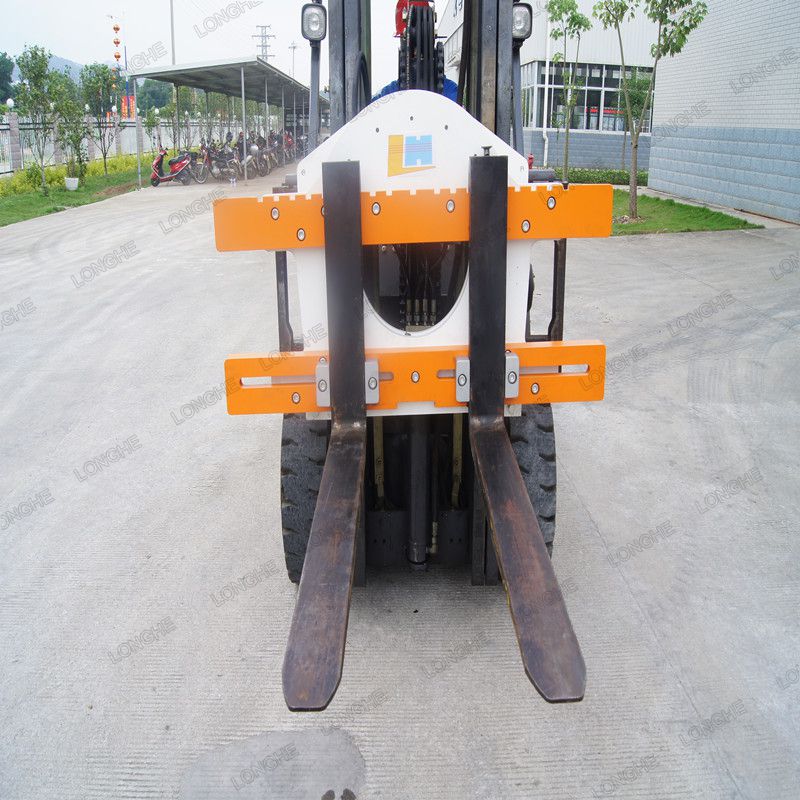

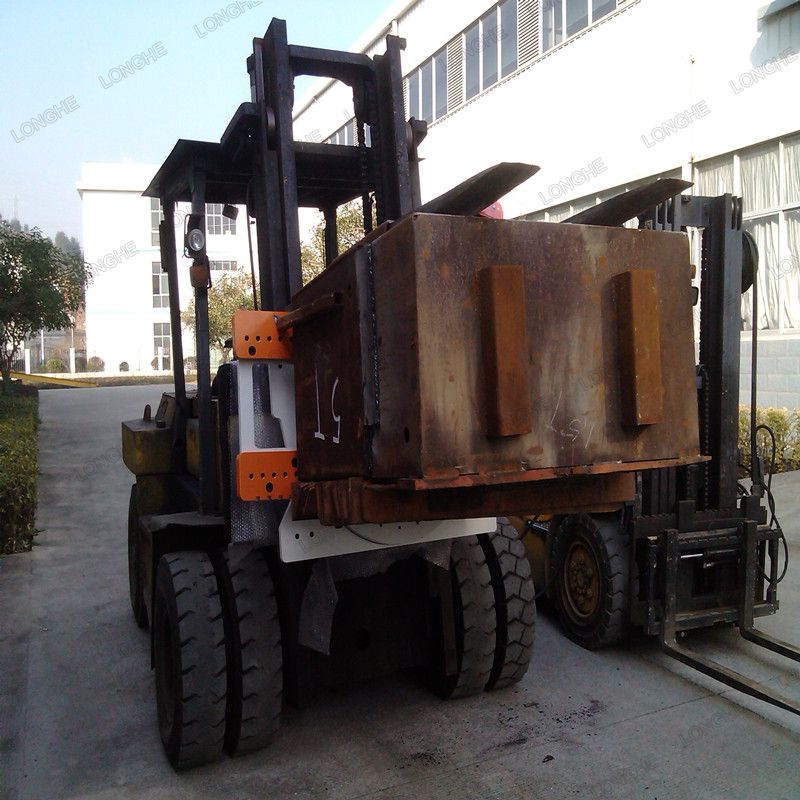

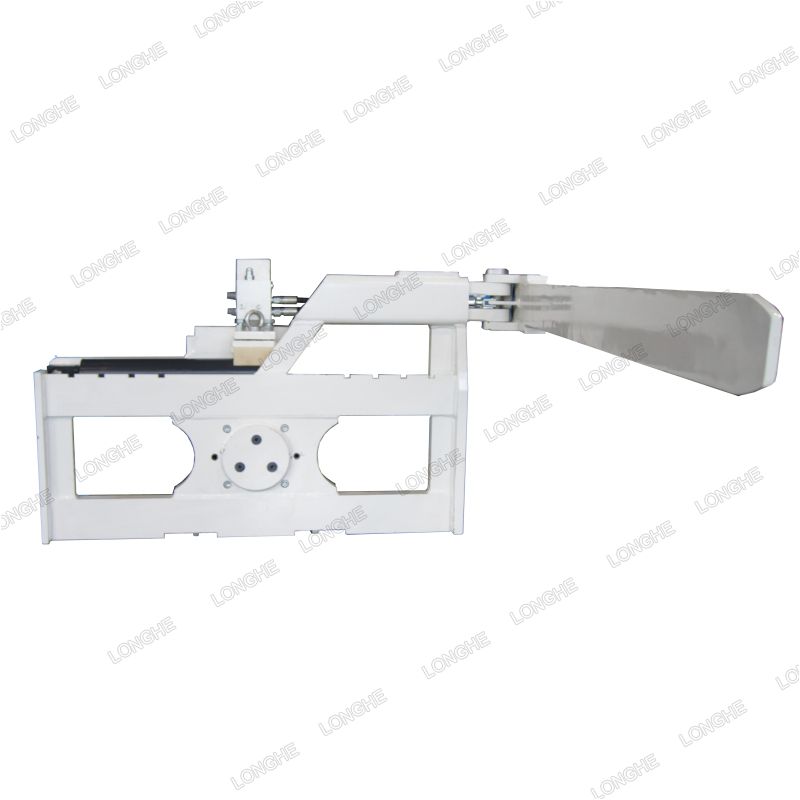

Used to rotate load hydraulically. Applied in industries that need to turn its load or pour its load's con-tent. Commonly used in machining companies or recycling industries to dispose scrap _petrochemical and pharmaceutical industries for pouring of contents from container. Equipped with sideshifting function, it enables forklift to move its load from side to side to ease adjustment, stacking, loading and un-loading of goods.
Functions & Applications

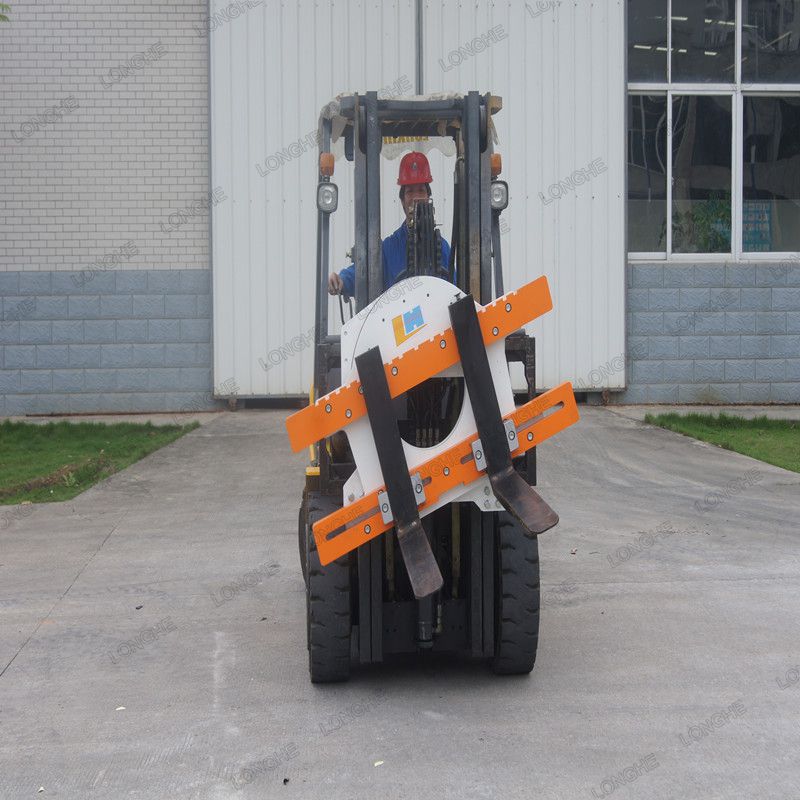

Rolling over 360°. Widely used n food industry, chemical industry, sanitation industry, recycle industry, smelting and casting industry, etc.
Features
● Proven durable construction design, unique rotating drive system, meet the high strength continuous operation
● Reduction gear and hydraulic motor hidden at the back of mounting plate, excellent driver visibility
● Strong rotating driving torque achieved the stable and reliable rotating function
● Hydraulic motor fixed with reversible hydraulic lock, any angle position of lock function

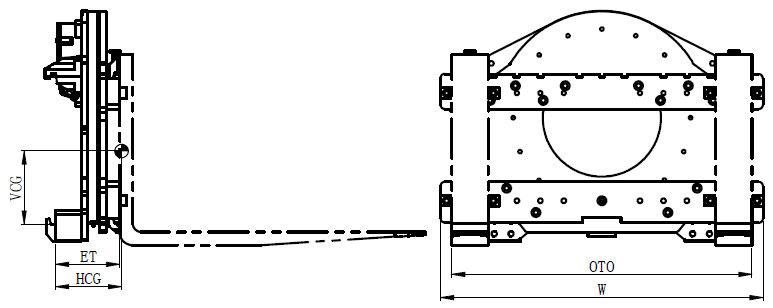

| Capaticy@ Load Center | Model | Truck/ Rotator Mounting Class | Rotator/ Fork Mounting Class | Carriage Width | Fork Max. Spacing | Mimimum Truck Carriage Width | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (Kg@mm) | W(mm) | OTO(mm) | (mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | |||
| 1500@600 | XZQ15E-B003 | II | II | 930 | 825 | 800 | 276 | 205 | 173 | 88 |
| 2500@600 | XZQ25E-B002 | II | II | 1115 | 1030 | 800 | 295 | 311 | 160 | 91 |
| 2500@600 | XZQ25E-B003 | II | II | 1040 | 955 | 800 | 296 | 306 | 160 | 90 |
| 3500@600 | XZQ35E-C001 | III | III | 1100 | 1030 | 800 | 303 | 378 | 228 | 138 |
| 3500@600 | XZQ35E-C002 | III | III | 1115 | 1045 | 800 | 303 | 380 | 228 | 137 |
| 3500@600 | XZQ35E-C003 | III | III | 1150 | 1080 | 800 | 302 | 382 | 228 | 138 |
| 3500@600 | XZQ35E-C004 | III | III | 1200 | 1130 | 800 | 300 | 386 | 228 | 141 |
| 3500@600 | XZQ35E-C006 | III | III | 1300 | 1230 | 800 | 286 | 394 | 228 | 140 |
| 3500@600 | XZQ35E-C007 | III | III | 1350 | 1280 | 800 | 286 | 398 | 228 | 141 |
| 4500@600 | XZQ45E-C001 | III | III | 1200 | 1094 | 1016 | 326 | 489 | 178 | 98 |
| 4500@600 | XZQ45E-C002 | III | III | 1300 | 1220 | 1016 | 324 | 518 | 178 | 99 |
| 4500@600 | XZQ45E-C003 | III | III | 1150 | 1044 | 1016 | 326 | 472 | 178 | 99 |
| 6000@600 | XZQ60E-D001 | IV | IV | 1200 | 1021 | 1016 | 310 | 577 | 235 | 143 |
| 6000@600 | XZQ60E-D002 | IV | IV | 1500 | 1321 | 1016 | 305 | 622 | 235 | 145 |
| 7000@600 | XZQ70E-D001 | IV | IV | 1550 | 1330 | 1150 | 380 | 840 | 272 | 130 |
| 8000@600 | XZQ80E-D001 | IV | IV | 1800 | 1600 | 1150 | 380 | 820 | 272 | 166 |
Hydraulic Flow and Pressure Flow:
| MODEL | Pressure(Bar) | Hydraulic Flow(L/min) |
| Rated | Recommended | |
| 15E/25E/35E | 160 | 20-60 |
| 45E/60E/70E/80E | 160 | 20-80 |
Rotating Specifications
| Model | Rotating Speed | Rotating Torque |
| 15E | 7.5r/min@60L/min | 4200N﹒m@160Bar |
| 25E/35E | 5.2r/min@60L/min | 9000N﹒m@160Bar |
| 45E/60E | 3.2r/min@60L/min | 11000N﹒m@160Bar |
| 70E/80E | 1.6r/min@60L/min | 11000N﹒m@160Bar |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 1 additional hydraulic circuit required
3. Without forks/special forks to be added upon request
* Other technical details available upon request
