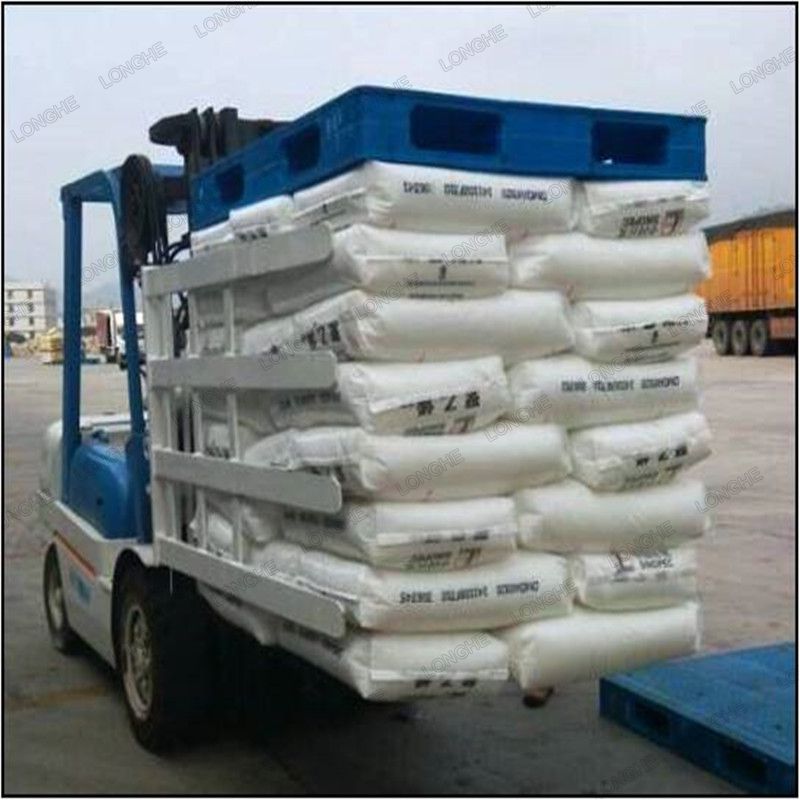

Designed for palletless handling. Used to transport and stack loads packed in bags that stacked on pallets, such as plastic raw material, concrete, fertilizer, feed, sugar and etc. As loading truck, rotating, separating load with pallet and pushing the load out to destination, while the pallet is kept, will finish the operation. Lower fatigue for operator, safety and high efficiency.
Functions & Applications
Pusher/Push Pull is designed for slipsheet applications requiring high productivity with easy maintenance.
Features
● Excellent driver visibility
● Flexible spacing between both fork planks
● Smooth contact parts ease the damage of slide plate
● Strength and durability to work in demanding applications
● High strength and secure structure
● Simplified hydraulic system
● Smooth operation with the buffering function of cylinder

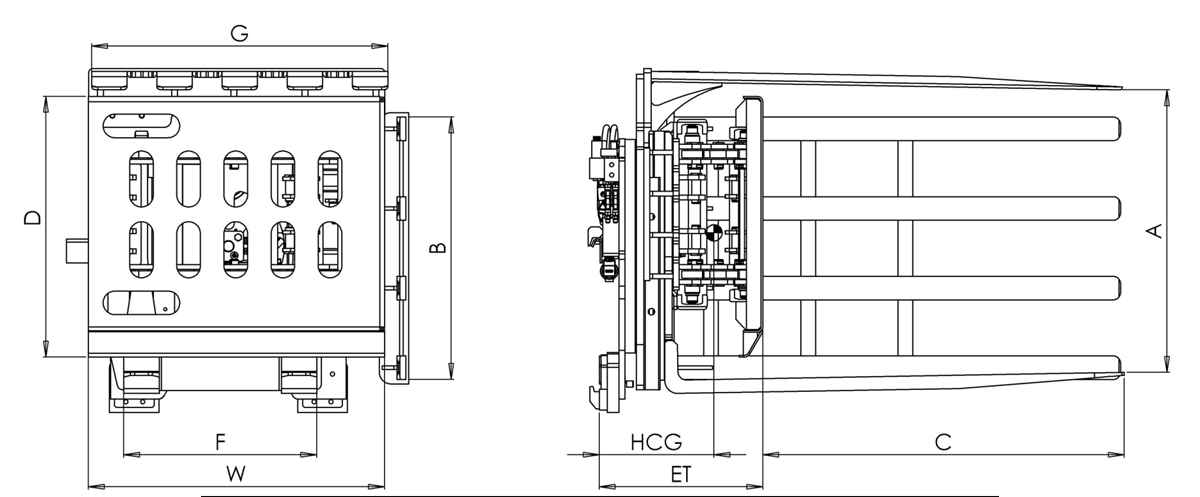

| Capacity@ Load Center | Model | Mounting Class | Opening Range | Launch Distance | Platen width | Fork Distance | Push Plate Size | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | H*W | (kg) | ET(mm) | HCG(mm) | |||||
| 1500@500 | TCX15D-C010 | III | 850-1250 | 1136 | 1300 | 870 | 800*1300 | 1275 | 475 | 395 |
| 1500@500 | TCX15D-C011 | III | 965-1545 | 1180 | 1300 | 870 | 910*1300 | 1330 | 450 | 391 |
| 1500@500 | TCX15D-C013 | III | 965-1545 | 1250 | 1200 | 870 | 910*1200 | 1335 | 430 | 413 |
Recommend Hydraulic Flow: 30L/min
Pressure: 160 Bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuit required
* Further technical details are available upon request
