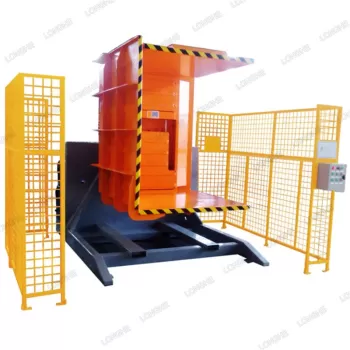

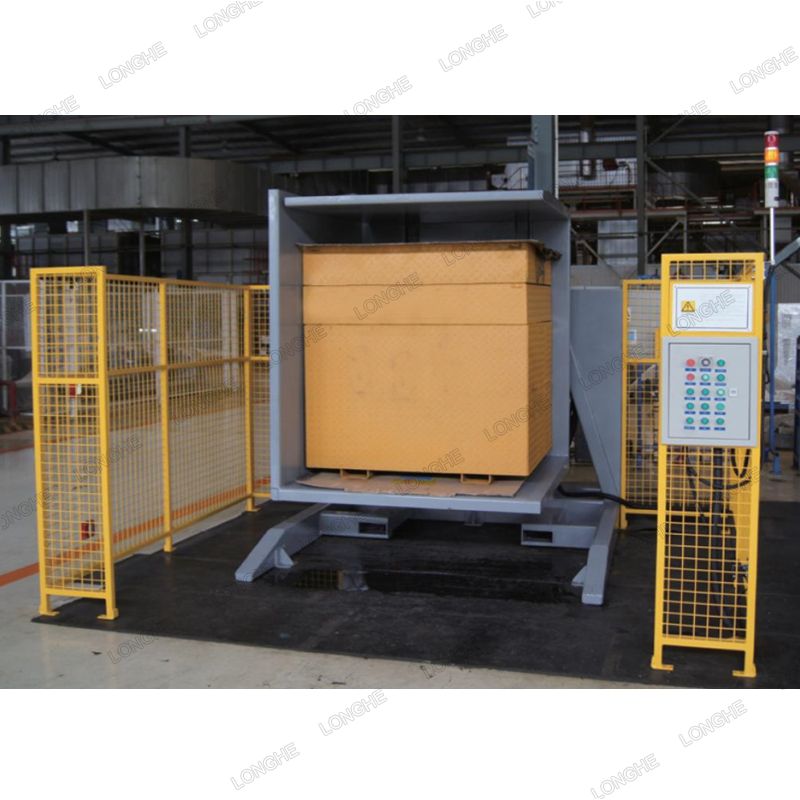

Floor flush design to enable loading of load by pallet trucks. Enable changing of pallet for stable load at 90° position. Able to turn 90° and release for load to be squared by the specially designed side support platform. Simple and safe to operate. Available in optional automatic sequencing control design.
Functions & Applications
Designed to provide a reliable, economical and efficient means of inverting loads, allows transfer of boxed, bagged or canned products to pallet or slipsheet, freezer spacer removal, damaged carton replacement.
Features
● Self-contained power pack
● Adjustable relief valve and restrictor cartridge
● Stable platform
● Fork pockets for easy relocation
● Special and durable rubber pad as cushion on rotating end Options
● Custom opening range
● Custom pad size
● Custom power supply
| Capacity@Load Center | Model | Safe Guard Fencing Size | Pallet Inverter Size | Platform Size | Fixed Lateral Support Size | Opening Range | Rotation Angle | Weight |
| kg@mm | WxLxH （mm） | W1 x L1 x H1 (mm) | DxG (mm) | FxN (mm) | A (mm) | (°) | (kg) | |
| 1500/650 | TPQ15A-001 | 2970x2500x1760 | 1760x2160x2050 | 1300 x 1300 | 1200x1540 | 760 - 2000 | 0-90° | 2700 |
Note
1. Working Pressure: 16MPa
2. Operational voltage type outer power rating upon requested
* Further technical details available upon request
