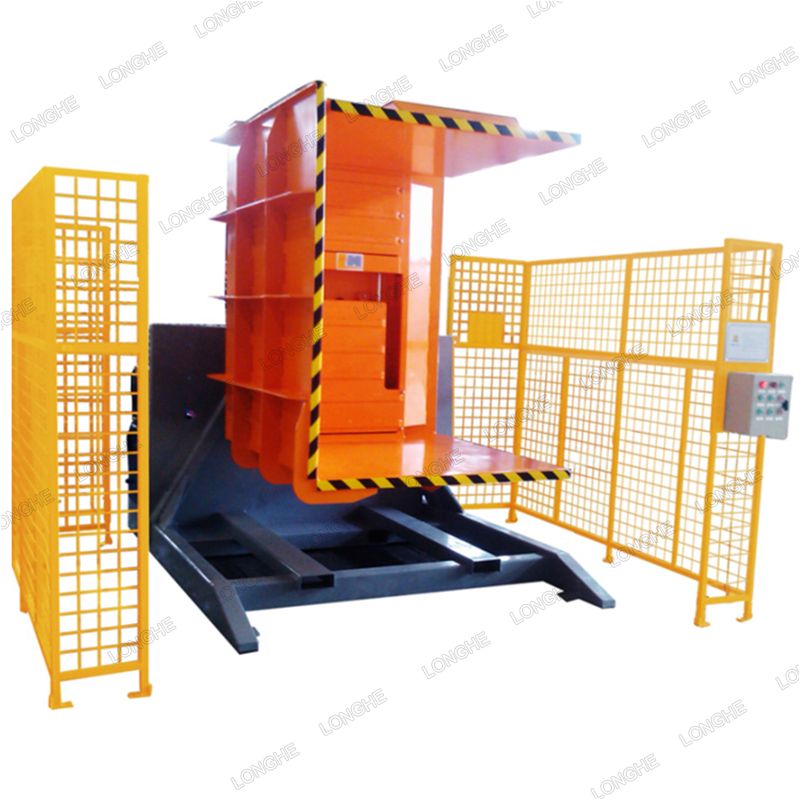

Floor flush design to enable loading of load by pallet trucks. Enable changing of pallet for stable load. Specially design backward tilting change pallets without inverting load. Simple and safe to operate. Available in optional automatic sequencing control and fully automated in-line design.
Functions & Applications

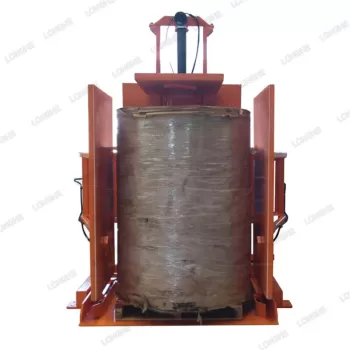

Designed to provide a reliable, economical and efficient means of inverting loads, allows transfer of boxed, bagged or canned products to pallet or slipsheet, freezer spacer removal, damaged carton replacement.
Features
● Self-contained power pack
● Adjustable relief valve and restrictor cartridge
● Stable platform
● Fork pockets for easy relocation
● Special and durable rubber pad as cushion on rotating end Options
● Custom opening range
● Custom pad size
● Custom power supply
Capacity@ Load Center | Model | Safe Guard Fencing Size | Platform Size | Fixed Stabilizer Size | Opening Range | Rotation | Weight |
| (kg@mm) | W x L x H (mm) | DxG (mm) | FxN (mm) | A (mm) | (°) | (kg) | |
| 2000/650 | TPQ20MD-001 | 3120x2420x1760 | 1300x1300 | 1300x1900 | 1060-1900 | ±180° | 2150 |
| 2000/650 | TPQ20D-001 | 2120x2660x2466 | 1300x1300 | 1330x1700 | 920-1600 | ±180° | 2150 |
Recommend Hydraulic Flow: 20L/min
Pressure: 16 Bar
Note
1. Working Pressure: 16MPa
2. Operational voltage type outer power rating upon requested
* Further technical details available upon request
