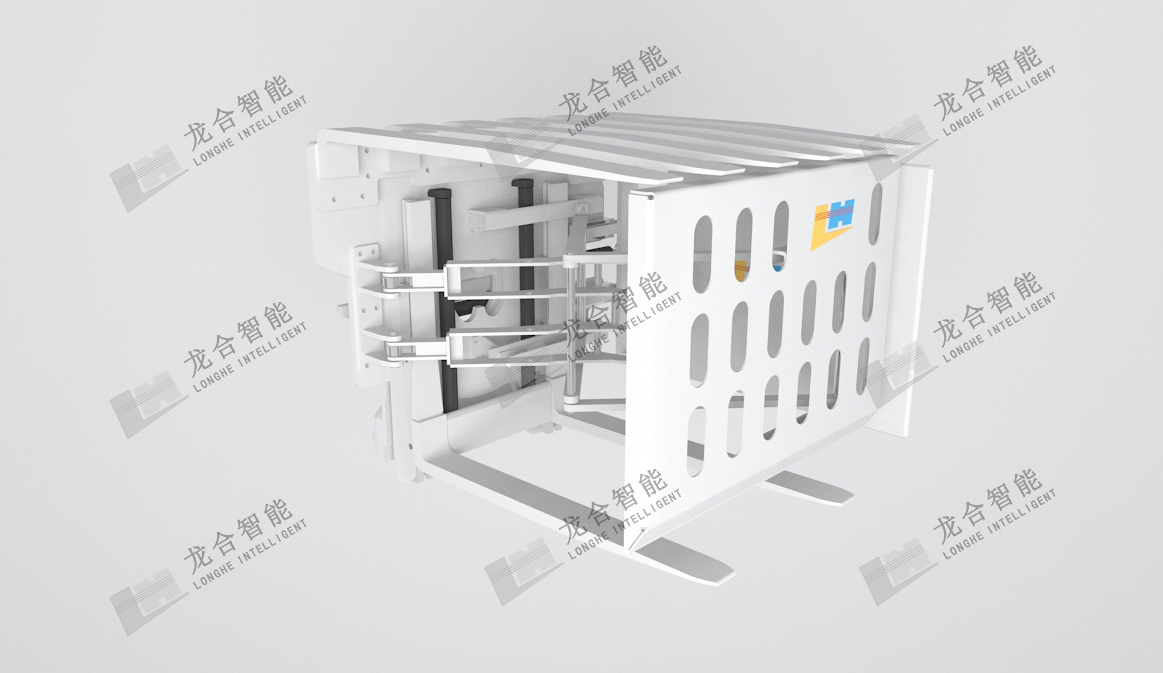

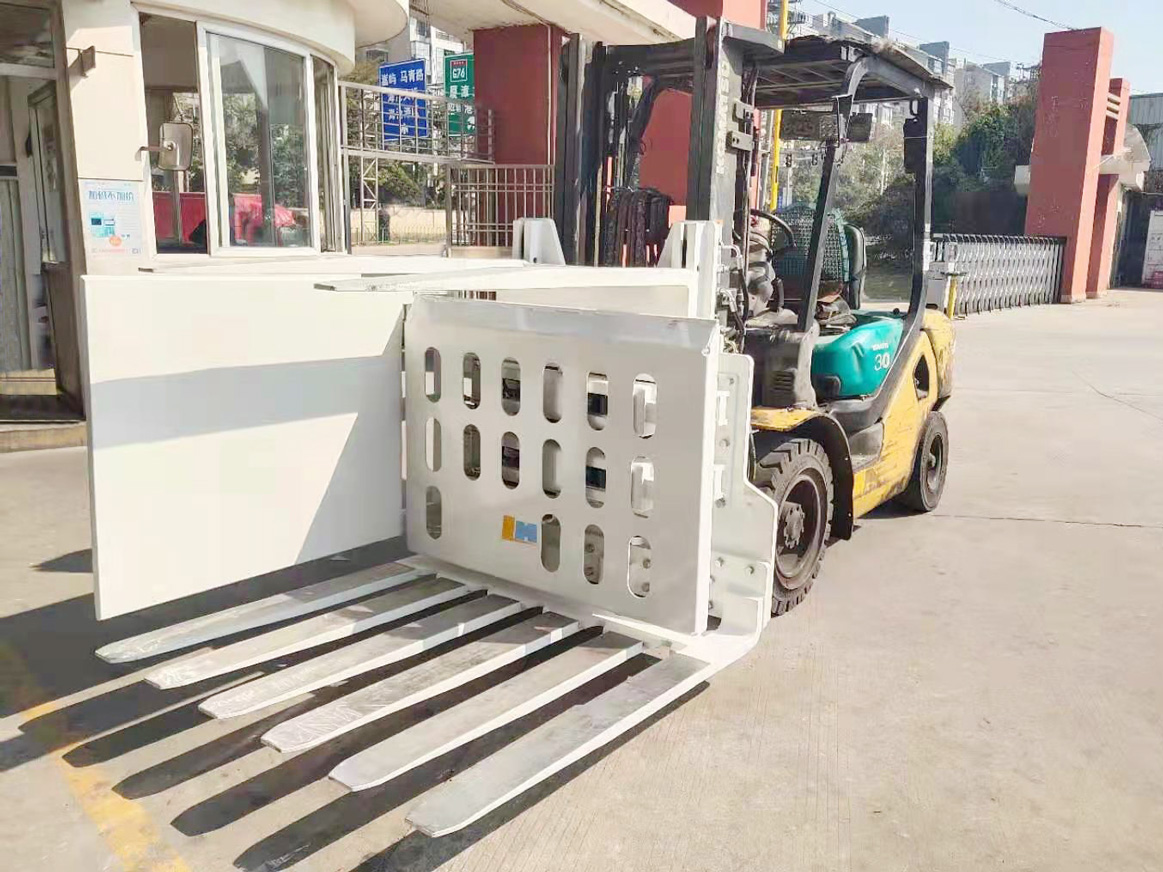

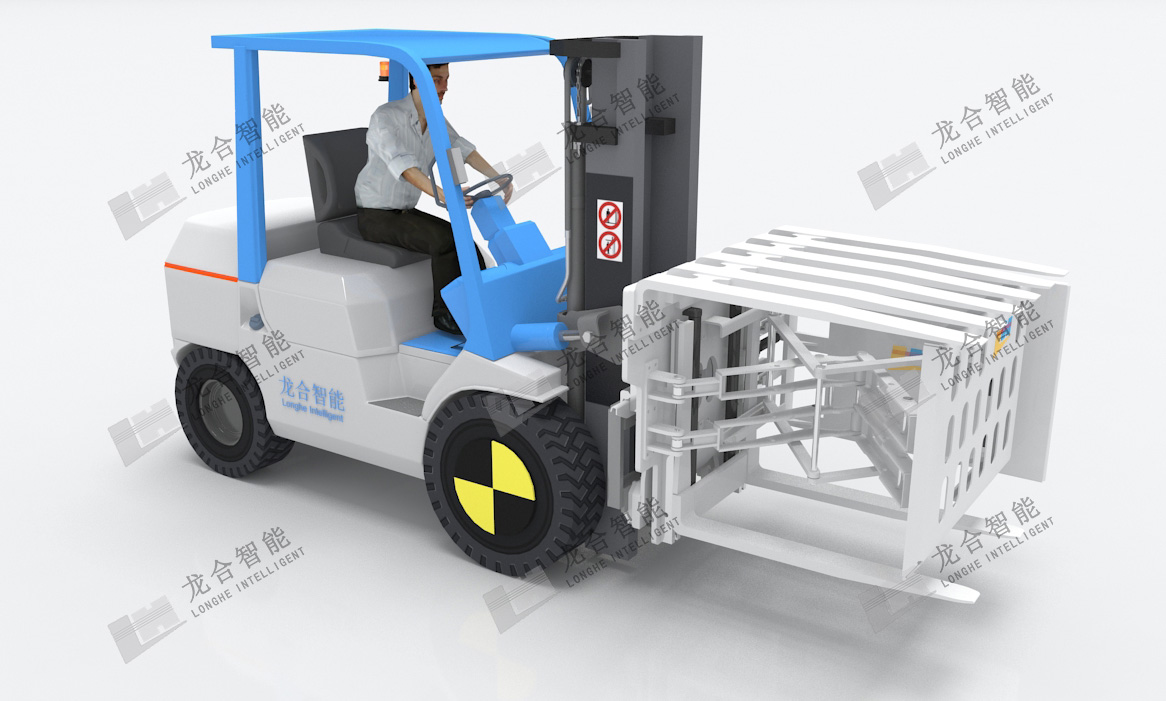

Longhe Inverter Load Pusher is suitable for the shipping and loading of pallet-less handing such as plastic rice (polyethylene, polypropylene, etc.), cement, feed, grain, sugar and other bagged goods, with the characteristics of safety, efficiency, and low labor intensity. , Is widely used in petrochemical, feed, storage, sugar, grain, and other end-customer industries that mainly ship packaged products. At present, it has been highly recognized and widely promoted in large enterprises such as Sinopec, COFCO and Yihai Kerry, etc.
In response to the high labor cost of manual loading, low delivery efficiency and labor shortage reported by the market, the designers of Longhe intelligent products effectively fork, stabilize, rotate, push out the goods during the design process, and separate the pallet from the goods. The function is combined in one, so that the goods can be a fork, pressed, rotated, separated from the pallet, pushed out to the designated point, and the pallet is retained and collected, realizing the requirements of loading and boxing without traditional manual labor, and mechanization of empty pallets Collect stacked jobs.
Depending on the material and outer packaging of the bagged goods on-site, the rotary ejector developed and produced by Longhe Intelligent can be equipped with fixed, manual mechanical or full hydraulic side baffles for a fee to effectively prevent the goods from rotating. The "collapsed package" phenomenon that may occur in the process ensures the integrity of the cargo stack type, meets the different needs of customers, reduces the company's operating costs, and improves the company's efficiency.
Advantages:
1. Compact structure, good vision, easy to operate, and improve work efficiency.
2. Two-way 360° continuous rotation function, self-locking function at any angle position.
3. Equipped with a safety device to prevent the cargo from falling off when the forklift oil circuit is depressurized, which is safe and reliable.
4. Use the double solenoid valve to control side shift, rotation, clamping, pushing out and other actions, simplifying the oil circuit and pipeline.
5. The side baffle is controlled by a sequence valve, and the sidearm can be adjusted according to the cargo without adding an oil circuit, simplifying the operation.
6. The sealing components adopt international famous brands resistant to high pressure, high temperature, anti-aging, explosion-proof, and long service life.
7. Each key part adopts maintenance-free and oil-free lubrication bushings, which are easy to maintain and increase service life.
8. The connecting pin adopts alloy material to increase the strength and service life.
9. The design of the scissor frame is optional, with good strength, strong rigidity and good synchronization.
10. Both hydraulic motors and hydraulic locks adopt internationally renowned brands, with stable quality and stable performance.
11. The design of hydraulic components is reasonable so that the hydraulic system is well protected and has a long life.
Longhe Intelligent is committed to solving the problems of logistics and handling. To different applications, we provide multiple kinds of solutions for handling, loading & unloading purposes.
