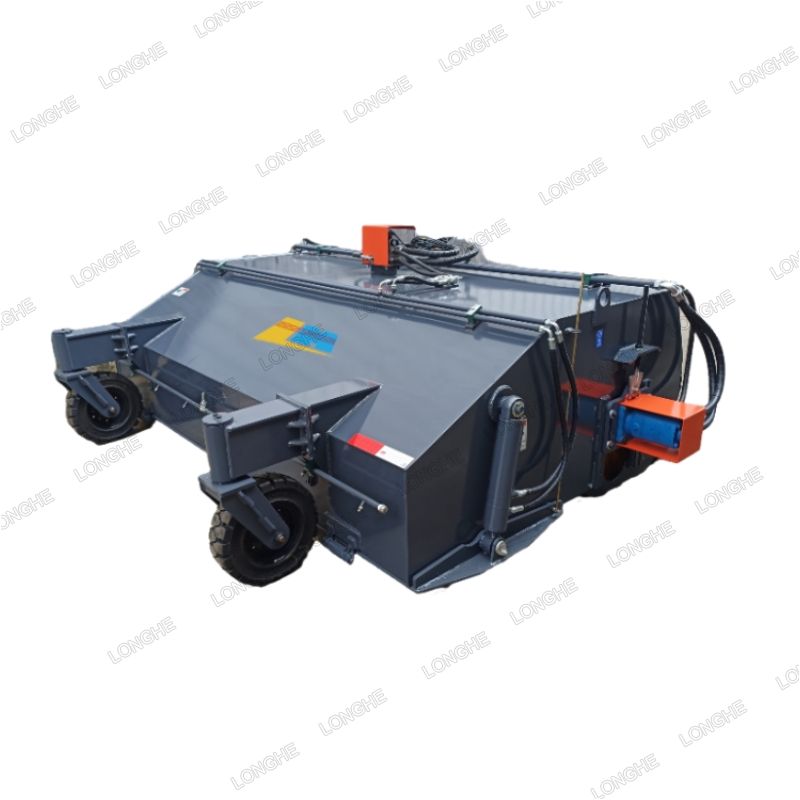

The attachment can be mounted on a loader and can sweep dust and waste from the road surface quickly cleaning sites such as car parks, coal plants, docks, warehouses and ports. It can put the cleaned waste in the aggregate hopper and put it in the designated location, which is the ideal cleaning tool.
Features:
Frame material: the whole structure is made of strength steel plate, which improves reliability and durability; the bottom of the collecting hopper is designed with removable wear-resistant steel plate, which reduces the wear and tear of the bottom of the hopper and long service life.
High-performance brushes: the brushes are made of new mixed wire brushes, of which the plastic wire is high elasticity, wear-resistant, diamond-shaped polyethylene propylene engineering material, and the steel wire is made of high elasticity, wear-resistant material 32SiMnTi, which greatly improves the service life of the brushes and the sweeping effect.
Driving design: the driving mode of sweeper adopts double motor direct drive, positive rotation feeding, and reverse rotation discharging, which greatly improves the operation efficiency.
Hydraulic control: the hydraulic system is designed with anti-hydraulic shock system, which can effectively protect the motor and prolong the service life of the motor.
Functions optional: high-pressure atomization dust removal system (optional) with automatic waterless controller, and liquid level alarm filter, to ensure the safety and reliability of the waterway system.
1. Outside Size：2910x3330x1250mm
2. Sweeping Width：2580mm
3. Weight：2150Kg
4. Pressure：21MPa
5. Bucket volume：1.6m²
6. Roller brush diameter：800mm
Note
* Further technical details available upon request
