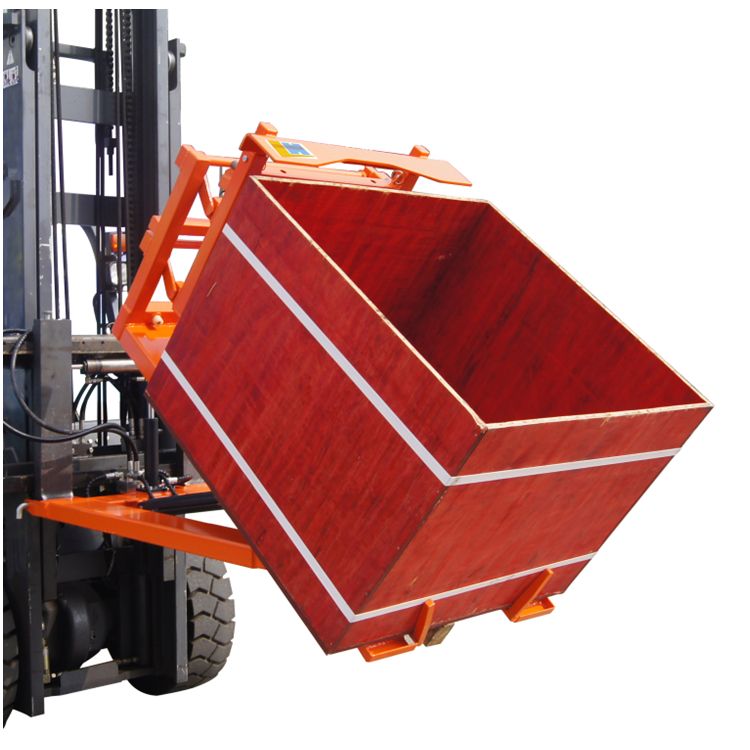

The bin tipper is an appliance for tipping boxes. Once a forklift truck hauls boxes to the assigned area, it works to dump stuff contained in the boxes, such as fruit and sundries, etc. The product also includes a good viewport, thus makes it convenient, safe and reliable to use and saving human resources
● one hydraulic circuit control system
● The maximum loading capacity: 1000kg
● The maximum size of forklift fork arm: 125×45×1000mm
● Surface treatment: painted finished
| Type | Box Size | SWL | Max. Fork Size | Fork Pocket Centers | Load Centre | Unit Weight |
| (kg) | (mm) | (mm) | (kg) | |||
| FXQA | 1180Lx700-900H | 1000 | 125x45 | 600 | 960 | 180 |
| FXQB | 1000Lx700-730H | 1000 | 125x45 | 600 | 950 | 161 |
