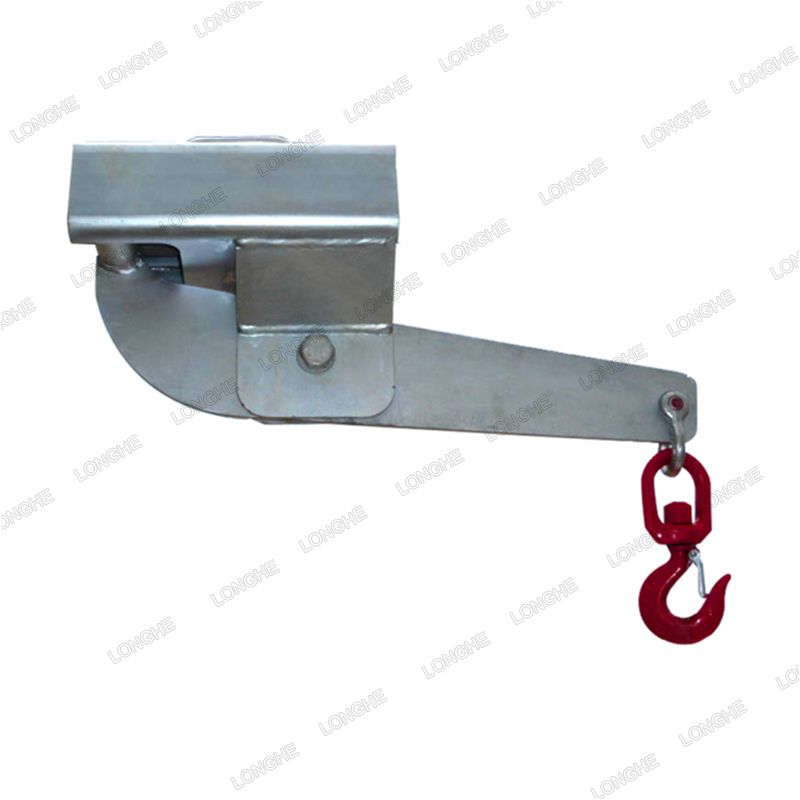

Our crane jib is designed with a focus on safety and reliability. With the long fork tunnels, you get optimum stability at every lift.
- Mounted on single/ dual fork with self-locating function and extendable boom
- Supplied with swivel safety hook and alloy shackle
- Surface treatment: Cold galvanized
CLC1500
| Type | A (mm) | B (mm) | C (mm) | Unit Weight (kg) | Capacity (kg) |
| CLC1500 | 575 | 180 | 80 | 24.0 | 1500 |
CLC3000
| Type | A (mm) | B (mm) | C (mm) | Unit Weight (kg) |
| CLC3000 | 360 | 180 | 80 | 77.0 |
| Position | Extension (mm) | Capacity (kg) | ||
| 1 | 840 | 3000 | ||
| 2 | 1200 | 2200 | ||
| 3 | 1600 | 1500 | ||
