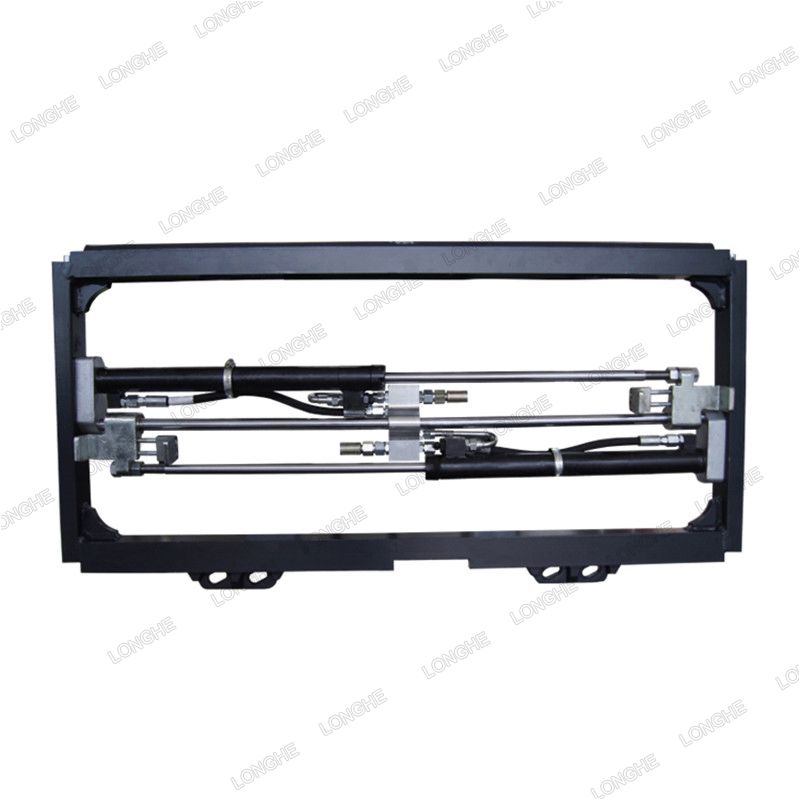

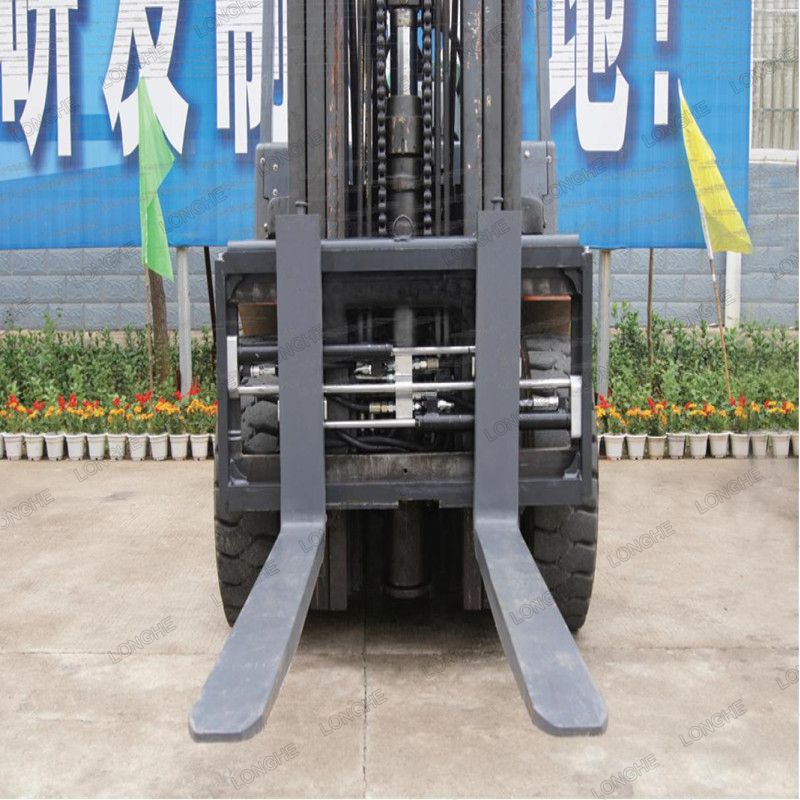

Enable operator to move forks wider apart or closer together hydraulically. Used to position forks to handle different load sizes that have different fork entries or width. When equipped with sideshifting function, it enables the forklift to move load from side to side to ease stacking, loading and un-loading of goods. Used in most industries with loads of different sizes for stacking, loading, unloading and placement of goods.
Functions & Applications
Sideshiting fork positioned is widely used in logistic industry, warehouse and manufacturing industry, etc. Adjust forks without leaving the seat.
Features
- Excellent driver visibility and secure operation
- Self-lubricate bearing for extended the service life.
- Adjustable fork carriage for various forks.
- Easy and fast maintenance

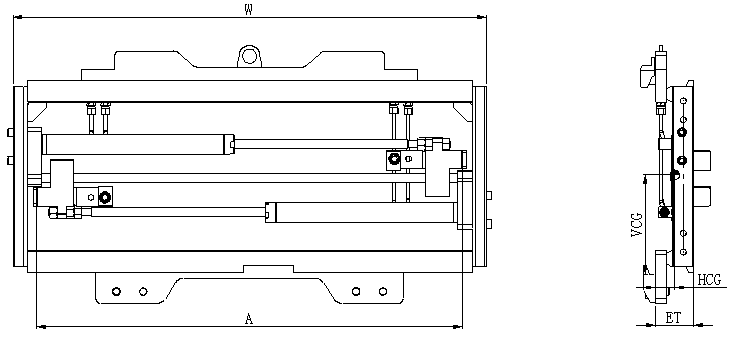

| Capacity@ Load Center | Model | Mounting Class | Opening Range | Carriage Width | Fork Pocket Width | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | W(mm) | E(mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | ||
| Non-SS, with Individual Fork Adjusting | |||||||||
| 2500@600 | TJC25E-B001-970 | II | 280-890 | 970 | 100-120 | 211 | 81 | 82 | 42 |
| 2500@600 | TJC25E-B001-1000 | II | 290-900 | 1000 | 100-120 | 211 | 82 | 82 | 42 |
| 3500@600 | TJC35E-C001-1100 | III | 290-1100 | 1100 | 100-125 | 267 | 103 | 87 | 43 |
| Non-SS, with Double Fork Adjusting | |||||||||
| 2500@600 | TJC25E-B003-970 | II | 280-890 | 970 | 100-120 | 211 | 81 | 82 | 42 |
| 3500@600 | TJC35E-C003-1100 | III | 290-1000 | 1100 | 100-125 | 267 | 103 | 87 | 43 |
Recommend Hydraulic Flow: 8L/min
Pressure: 160 Bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits required
3. Sideshifting 200mm (+/- 100mm)
4. Opening range refers to the distance between fork’s outer edges
5. The max fork length is 1520mm
6. Without forks
* Further technical details are available upon request
