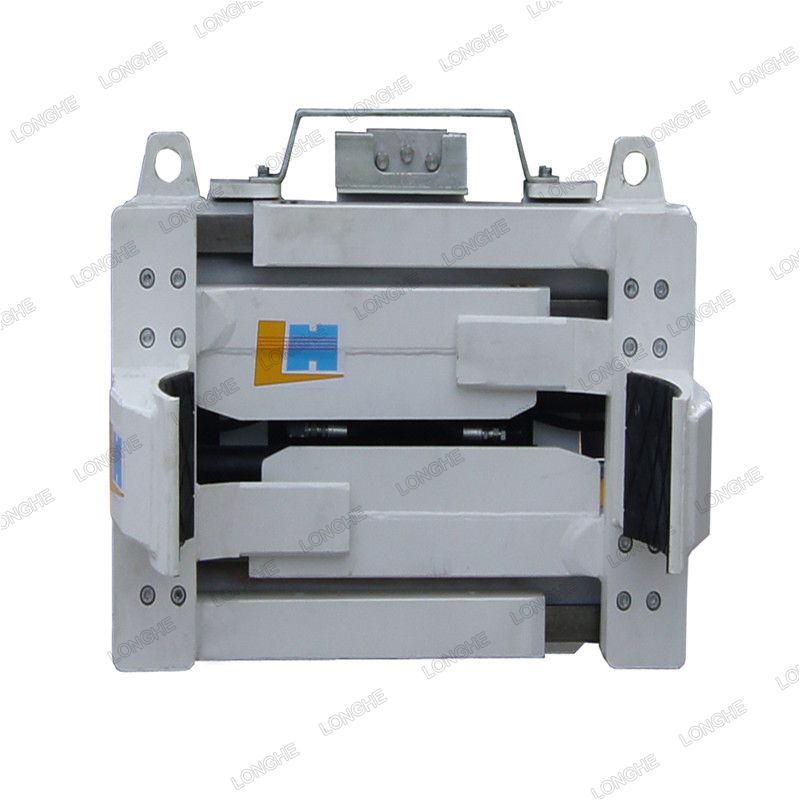

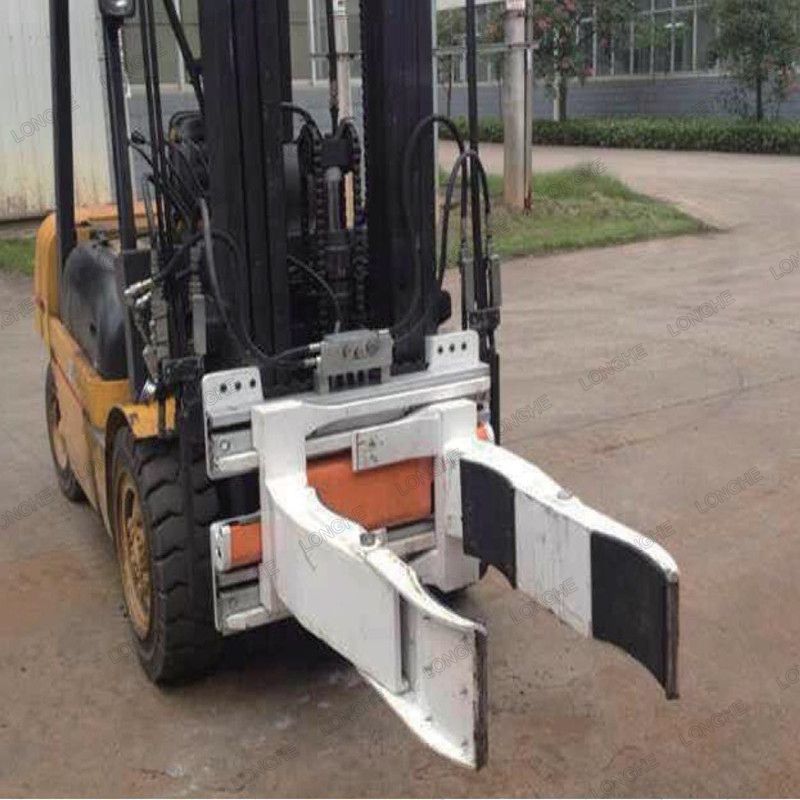

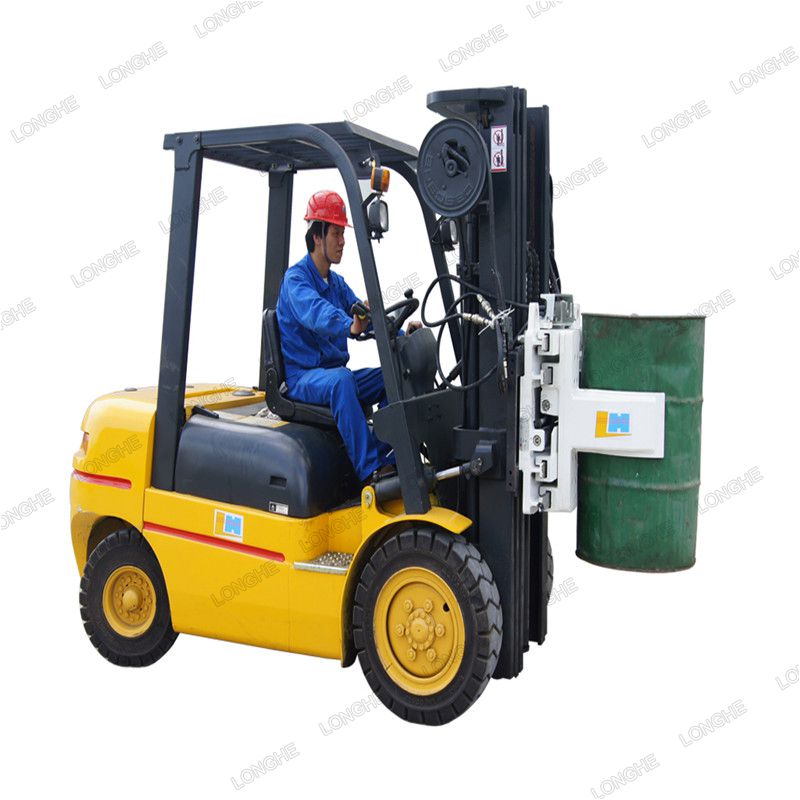

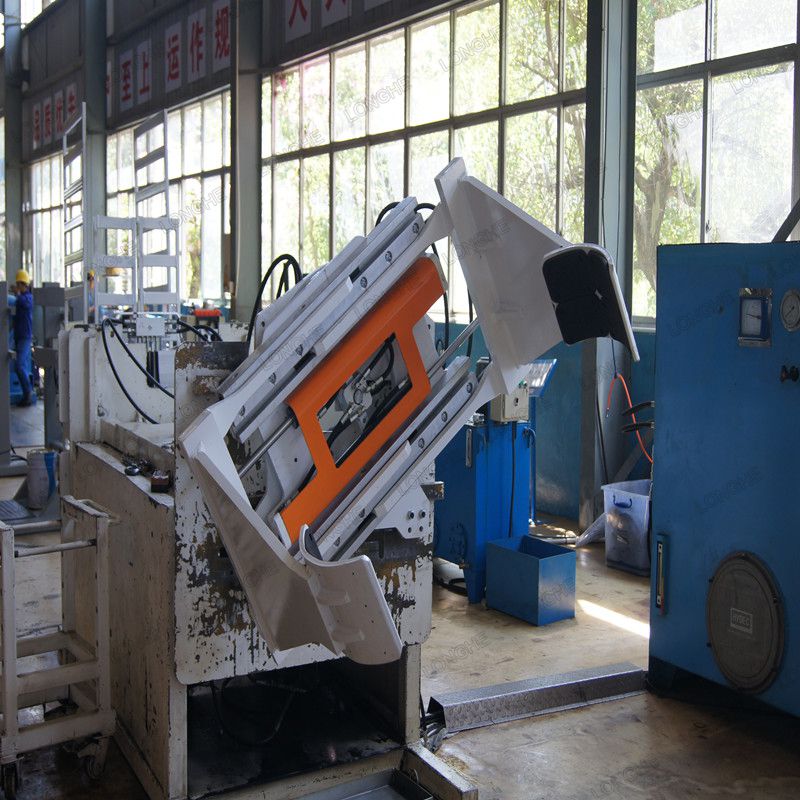

Drum clamp can handle one, two or four drums during transportation, ensure the safe and reliable clamping and improve the handling efficiency. Lateral sliding arm design for smooth clamping and sideshifting function. Models with 360° rotating function for operation that requires to pour content in drum or rotating for mixing operation. Widely used in petrochemical, chemical, pharmaceutical,logistic industries、food and any other industries that needs to handle drums.
Functions & Applications
Drum clamp can handle one, two or four drums during transportation, ensure the safe and reliable clamping and improve the handling efficiency. Widely used in the bottled cargo stacking operations, such as oil, petrochemical and food industries, etc.
Features
● Superior arm-slide bearing for extended service life
● Regenerative hydraulic valve for optimal arm speed with less energy consumption
● Excellent driver visibility and secure operation
● Handling one, two or four drums per load
● Special rubber contact pads

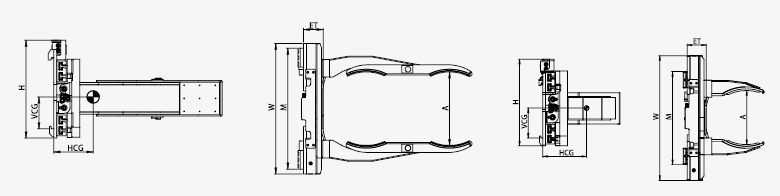

| Capacity@ Load Center | Model | Mounting Class | Mounting Angle | Opening Range | Frame Width | Hook Spread | Overall Height | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A(mm) | W(mm) | M(mm) | H(mm) | VCG(mm) | (kg) | ET(mm) | HCG(mm) | |||
| 1900@500 | BTC19F-C001 | Ⅱ | 0° | 415-1560 | 940 | 870 | 706 | 210 | 325 | 187 | 143 |
| 1400@500 | BTX14F-B005 | Ⅱ | 0° | 470-1700 | 940 | 835 | 785 | 356 | 608 | 290 | 311 |
| 1900@500 | BTC19D-C002 | Ⅲ | 0° | 530-1785 | 940 | 870 | 705 | 220 | 405 | 186 | 295 |
| 1900@500 | BTX19D-B003/C003 | Ⅱ/Ⅲ | 0° | 470-1700 | 940 | 815 | 785 | 354/351 | 607/613 | 282/332 | 289/336 |
Hydraulic Flow and Pressure Flow:
| MODEL | Pressure(Bar) | Hydraulic Flow(L/min) | ||
| Rated | Rotatting | Clamping | Sideshifting | |
| 14F/19D/19F | 160 | 20-60 | 20-60 | 20-60 |
Rotating Specifications
| Model | Rotating Speed | Rotating Torque |
| 14F/19D | 5.2r/min@60L/min | 9000N﹒m@160Bar |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits required
3. Opening range refers to distance between arm inner tips
4. For 55 gallon drums (205 kg) handling, 2 drums version is for 1 or 2 drums handling and 4 drums version is for 1, 2 or 4 drums operation
5. Also available without sideshifting or rotating
* Further technical details are available upon request
