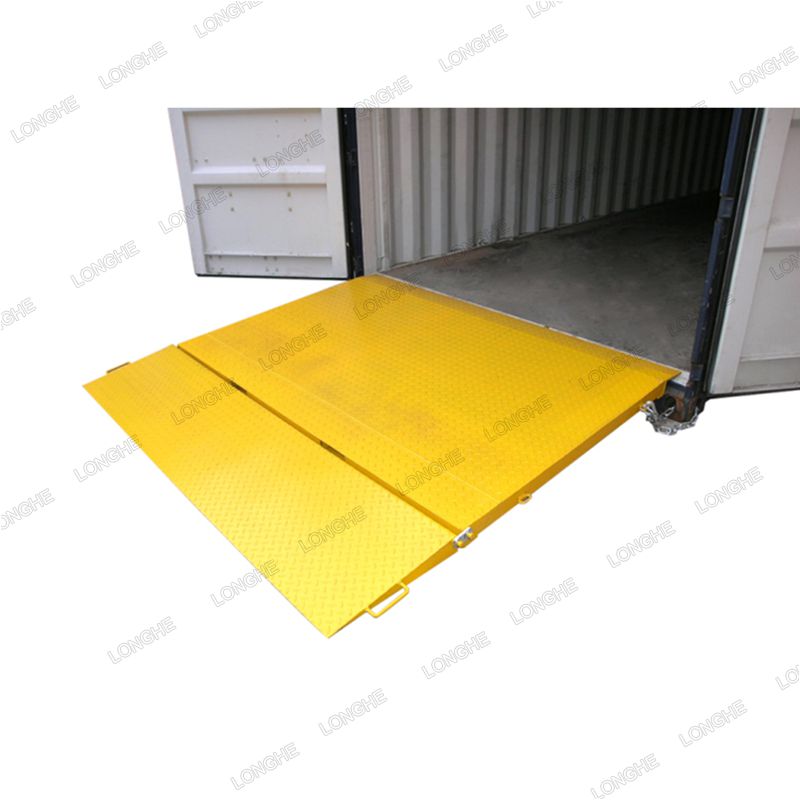

Container Ramp

- It's one of the most widely used container ramp

- It is extensively used as a connecting bridge between floor and standard containers, or for dock stevedoring and similar applications

- It's one of the most widely used container ramp

- It is extensively used as a connecting bridge between floor and standard containers, or for dock stevedoring and similar applications

- The mechanical ramp has a self-adjusting lip which allows full load even on uneven ground.

- Surface treatment: painted finish

- The max. capacity: 8000kg

- The thickness of the surface pattern: 5mm

TypeWidthxLengthSWLFork Pocket CentresMax. Fork SizeUnit Weight

(mm)(kg)(mm)(mm)(kg)
CRN652200x20006500775160x60304
CRSN82390x18008000518160x60400
CRLN82300x30008000718160x70680
FCR652000x13806500740160x50200
