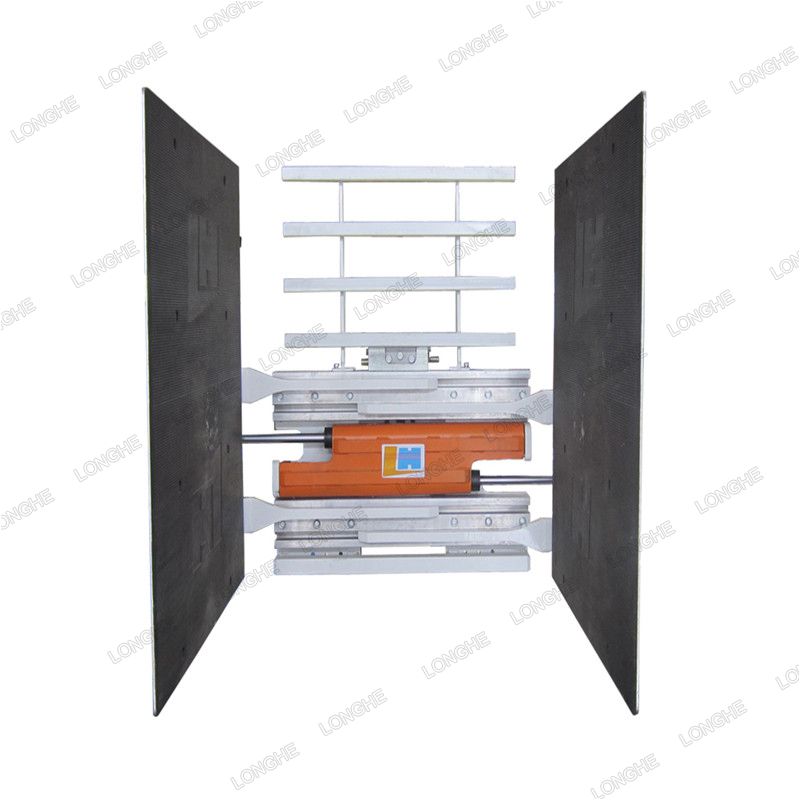

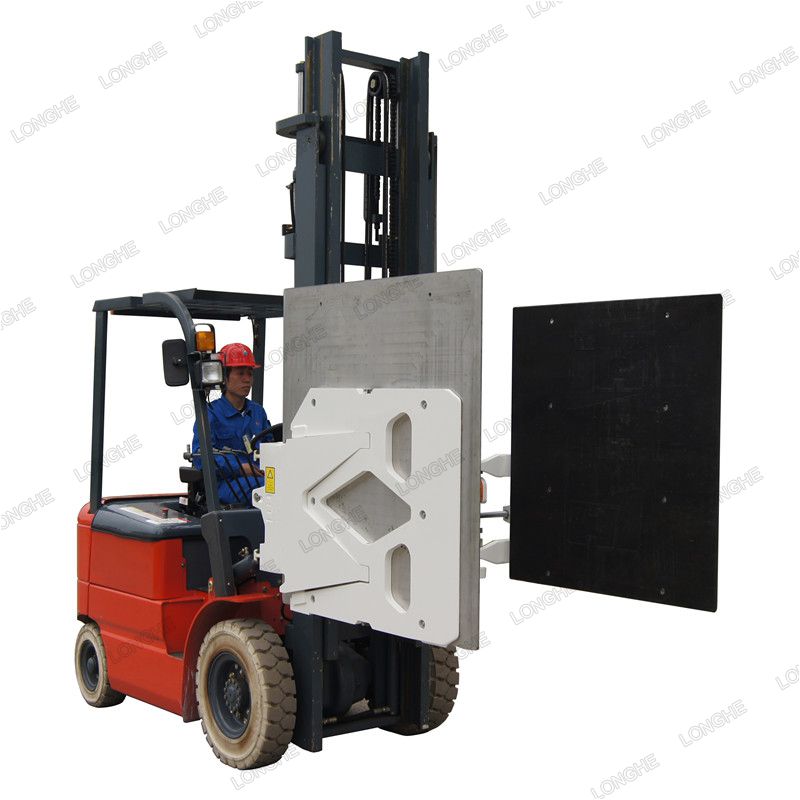

Carton clamp can handle and stack various goods packed in cartons palletless with high efficiency and safty. Design of lateral sliding arm for smooth clamping and sideshifting function. Large contact pad plus four stage adjusting valve as option to gurrantee clamping pressure in right scale so as not to damage the goods handled. It is widely used in tobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator, LED, washing machine and etc.
Functions & Applications

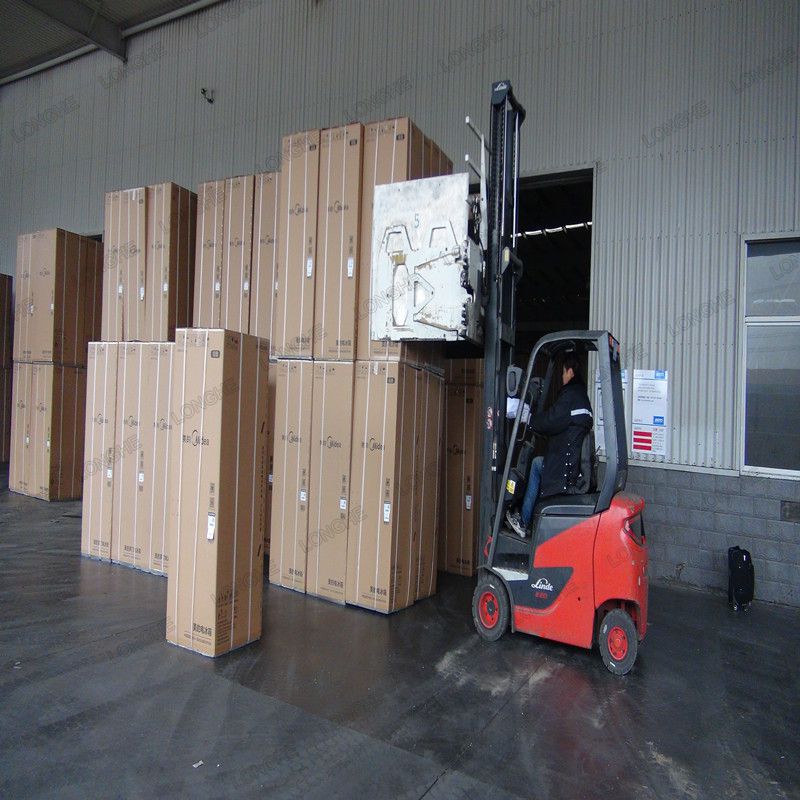

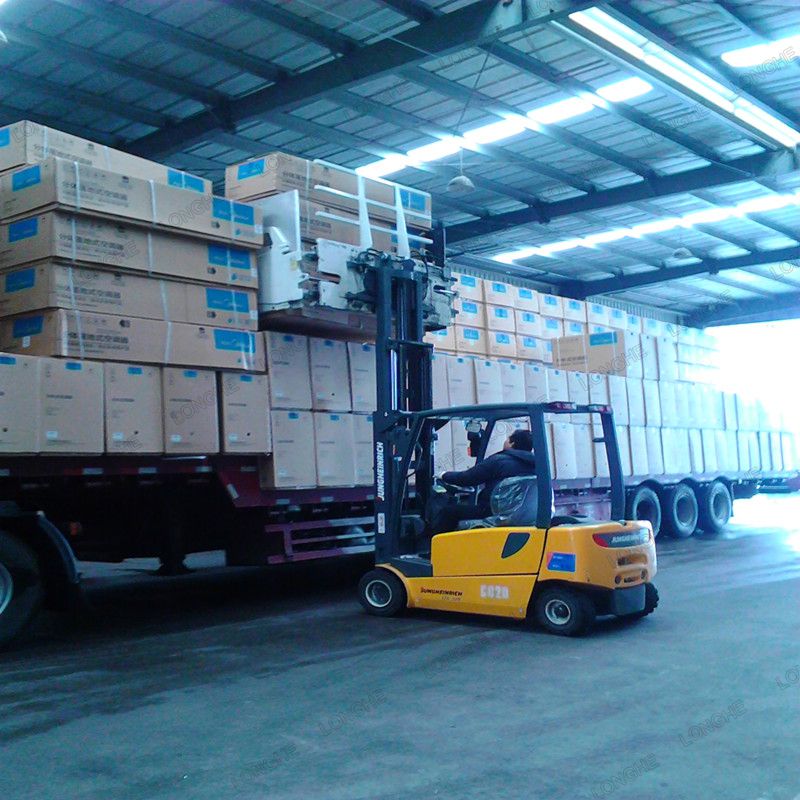

Carton clamp can handle and stack various goods packed in cartons securely and efficiently without working platform. It is widely used in tobacco industry and household appliances industry, etc.
Features
● Proven durable T-beam sliding pair reliable strength, long service life
● Superior arm-slide bearing for extended service life
● Thin arm designed, easy to permit close stacking
● Self-Adjusted oil pressure with intelligent control valve
● Vulcanized rubber pads design, economically
● Evenly clamp force
● Excellent driver visibility

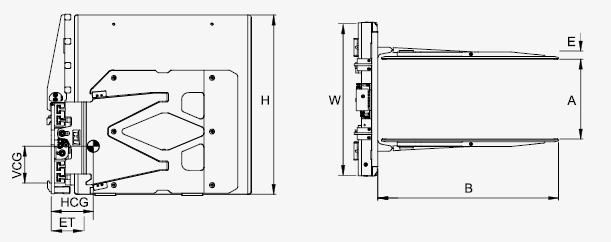

| Capacity@ Load Center | Catalog Order No. | Mounting Class | Opening Range | Frame Width | Arm Height | Arm Length | Arm Thickness | Vertical Center of Gravity | Horizontal Center of Gravity | Effective Thickness | Weight |
| (kg@mm) | A(mm) | W(mm) | H(mm) | B(mm) | E(mm) | VCG(mm) | HCG(mm) | ET(mm) | (kg) | ||
| 1900@500 | ZXC19F-B001 | II | 564-1964 | 1040 | 1220 | 1220 | 83 | 363 | 468 | 132 | 692 |
| 1900@500 | ZXC19F-B002 | II | 630-2350 | 1250 | 1220 | 1510 | 90 | 351 | 571 | 132 | 908 |
| 1900@500 | ZXC19F-B007 | II | 410-1980 | 1360 | 1220 | 1225 | 83 | 439 | 439 | 132 | 734 |
| 1900@500 | ZXC19F-B028 | II | 490-2410 | 1040 | 1225 | 1430 | 90 | 567 | 567 | 132 | 835 |
| 1900@500 | ZXC19F-C252 | III | 530-1930 | 1600 | 1225 | 1425 | 90 | 501 | 501 | 132 | 957 |
Recommend Hydraulic Flow: 40L/min –120L/min
Pressure: 160 Bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits required
3. Opening range refers to distance between arm tips
4. Dimension E refers to operation space required for arm
5. With sideshifting
* Further technical details are available upon request
