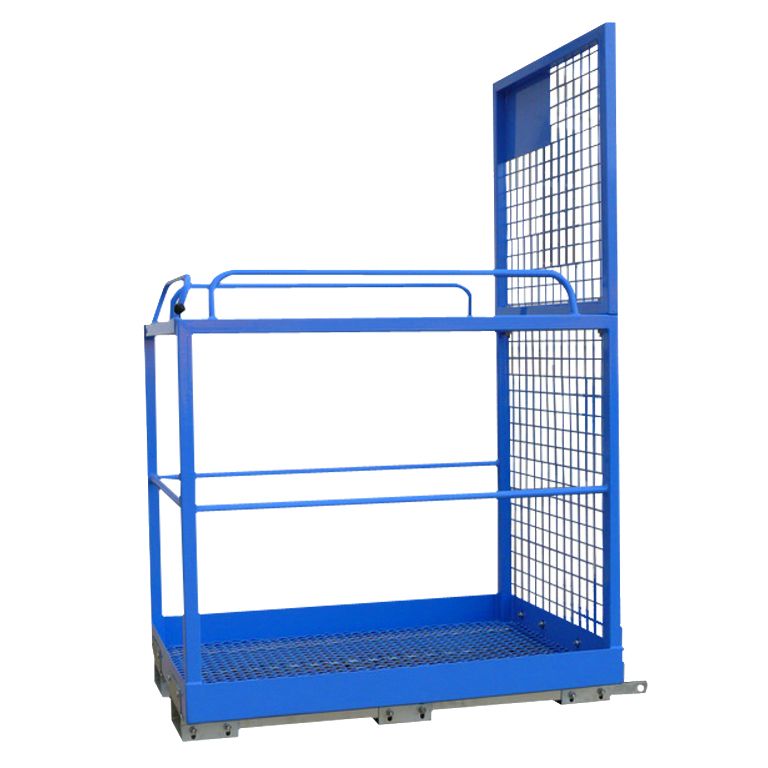

Forklift Platform
Features of Forklift Platform
- Secure, reliable and suitable for working at height.
- Self-closing gate with shackle, flexible operation and fast removal.
- Non-slip bottom-board with drain holes.
- Foldable for easy storage and transportation.
- Optional casters and tool box, flexible operation and fast removal.
WB1010
| Type | SWL | Outer Frame Size | Fork Pocket Size | Unit Weight | Flatpack size |
| (kg) | (mm) | (mm) | (kg) | (mm) | |
| WB1010B-01 | 250 | 1156x1226x2070 | 150x55 | 129 | 1230x1150x200 |
| WB1010E-01 | 250 | 1156x1226x2078 | 150x55 | 134.2 | |
| WB1010EA-01 | 250 | 1156x1226x2278 | 150x55 | 153.5 | |
| WB1010H-01 | 250 | 1156x1226x2070 | 150x55 | 133.9 | |
| WB1010Q-01 | 250 | 1156x1226x2080 | 150x55 | 153.5 |
WP
| Type | Max capacity | SWL | Fork Pocket Centres | Fork Pocket Size | Load Centre | Unit Weight | Flatpack size |
| (kg) | (mm) | (mm) | (mm) | (kg) | (mm) | ||
| WP-N | 2 people Max | 250 | 640 | 160x60 | 600 | 122 | 1230x1150x200 |
| WP-MS | 2 people Max | 250 | 640 | 160x60 | 600 | 132 | 1230x1150x250 |
| WP-NCR | 4 people | 500 | 680 | 185x85 | 310 | ||
| WP-NC | 4 people | 500 | 680 | 185x85 | 270 | ||
| WP-NC2R | 6 people | 750 | 590 | 185x60 | 500 | ||
| WP-NC2 | 6 people | 750 | 590 | 185x60 | 415 | ||
| FWP-25 | 2 people Max | 250 | 640 | 160x60 | 600 | 118 | 1230x1150x200 |
