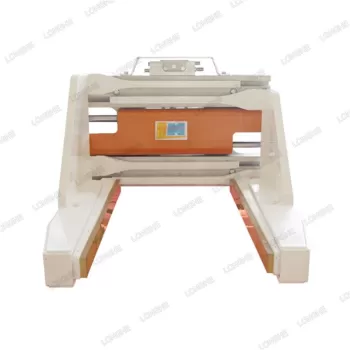

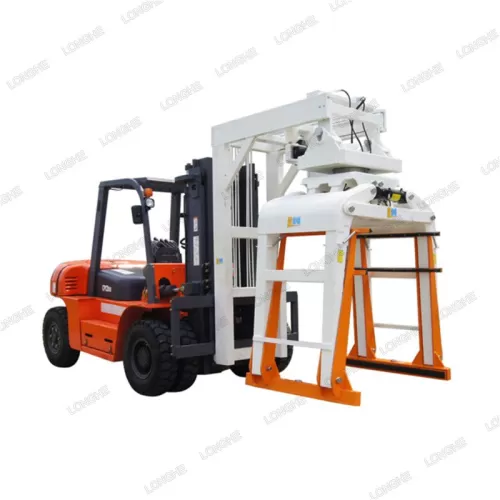

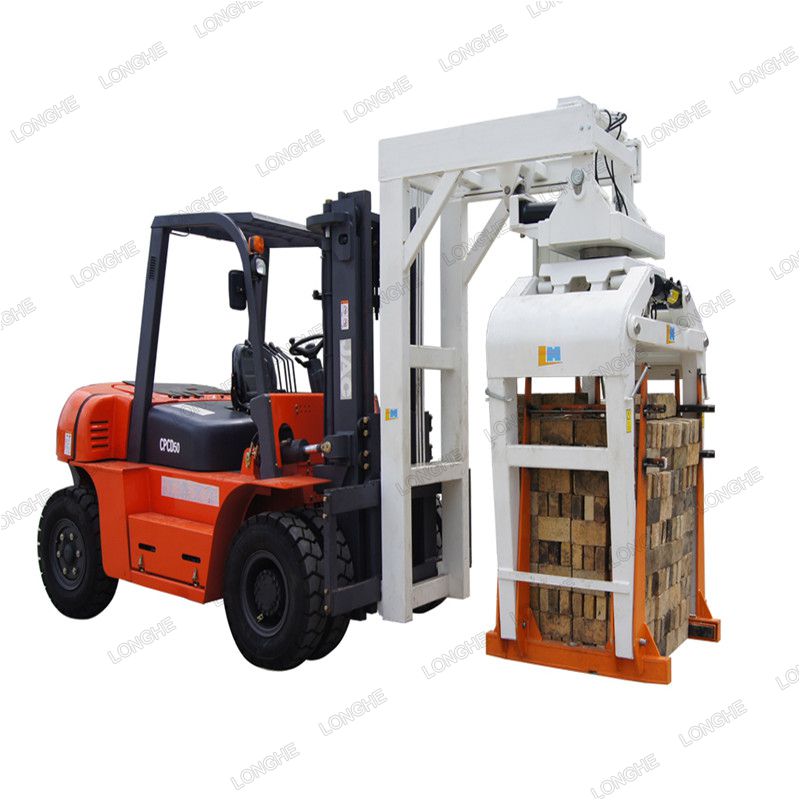

Overhead block clamp attachment provides a safe and efficient material handling solution and eliminate the risk of any damages to the concrete. It can efficiently handle and stack nearly any types of solid, regular cubic goods under normal temperature without pallet. Lateral sliding arm design for smooth clamping and sideshifting function.
Functions of Overhead Block Clamp for Concrete
Securely and efficiently handle and stack nearly any types of masonry products and cubic goods including aerated blocks, prefabricated cement, masonry products and graphite without pallet.
Applications of Overhead Block Clamp for Concrete

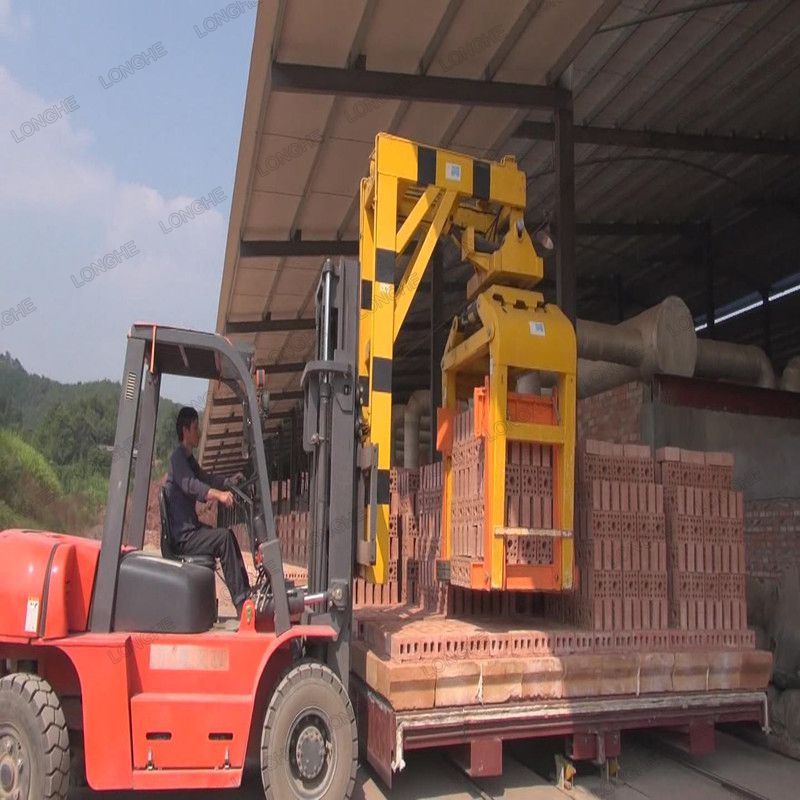

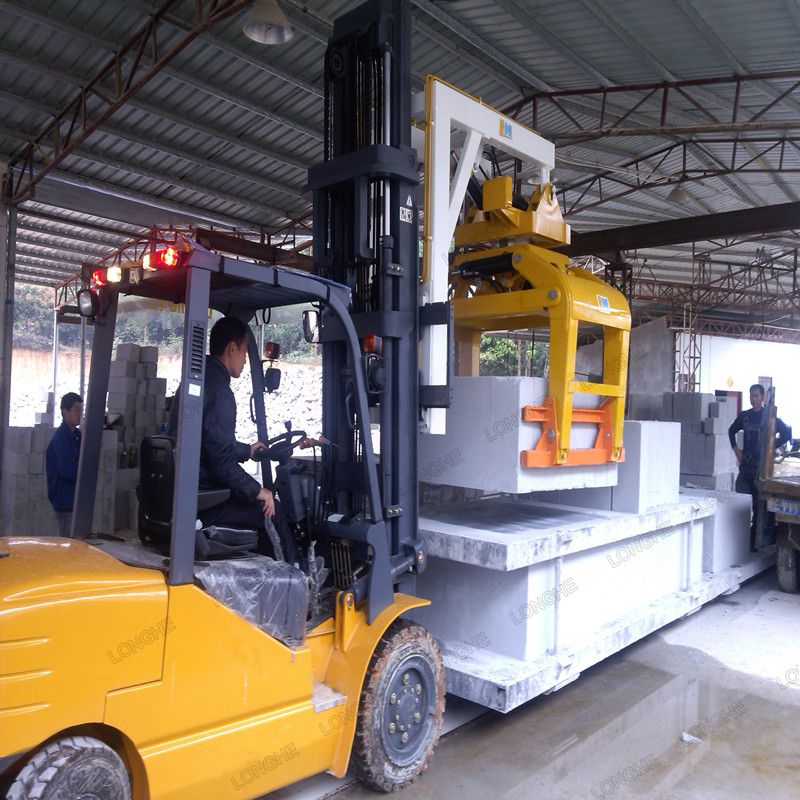

Widely used in construction material, metallurgy industries for handling concrete blocks, cement bricks, carbon cubes, etc. The high structural strength and durability can ensure safe, productive application and long service life.
Features of Overhead Block Clamp for Concrete
● 0°~100° rotation
● Rugged, durable construction
● Telescopic arm is convenient for handling blocks in a certain distance.
● Active arm adjusts the bricks to be flat in small range.
● Damping cylinder can ensure stable operation and reduce shaking during loading block
● Outstanding visibility as only two arm carriers are required
● Two hydraulic cylinders with self-aligning bearings to allow movement design fitted to the inside of the arm carriers for protection
● Highly corrosive resistant as every part is painted or zinc plated before construction
● Pivoting front arm to help secure top packs
Longhe is a leading overhead block clamp manufacturer and supplier with overhead block clamps to meet the handling needs within the industry. We offer various overhead block clamp solutions for handling different materials. Contact us to get detailed informaiton of overhead block clamp for concrete.
| Capacity@ Load Center | Catalog Order No. | Fork | Mounting Class | Opening Range | Extend Range | Rotating Angle | Clamp Width | Clamp Height | Frame Width | Frame Height | Overall Width | Weight | Effective Thickness |
| (kg@mm) | T(mm) | F(mm) | (°) | L(mm) | H(mm) | E(mm) | A(mm) | B(mm) | （kg) | (mm) | |||
| 1500 | ZKJ15D-C001 | No | Ⅲ | 800-1200 | 2210-2810 | 100° | 1020 | 1020 | 1020 | 2130 | 1550 | 1180 | 575 |
| 1500 | ZKJ15D-D001 | No | IV | 800-1200 | 2210-2810 | 100° | 1020 | 1400 | 1020 | 2630 | 1560 | 1900 | 960 |
Specification of Overhead Block Clamp
- Capacity: 1500Kg
- Mounting Class: III/IV
- Opening Range: 800mm – 1200mm
- Extend Range: 2210mm – 2810mm
- Rotating Range: 100°
- Clamp Width: 1020mm
- Clamp Height: 1020mm/1400mm
- Frame Width: 1020mm
- Frame Height: 2130mm – 2630mm
- Overall Width: 1550mm/1560mm
- Weight: 1180mm/1900mm
- Effective Thickness: 575mm/960mm
Recommend Hydraulic Flow: 38L/min
Pressure: 160 - 180 Bar
Note
1. Please contact FLT manufacture for the residual capacity of attachment.
2. 2 additional hydraulic circuits required, if telescopic function needed, 3 additional hydraulic circuits required.
3. Forklift in 5T or above required for telescopic block clamp.
* Further technical details are available upon request, contact us now
