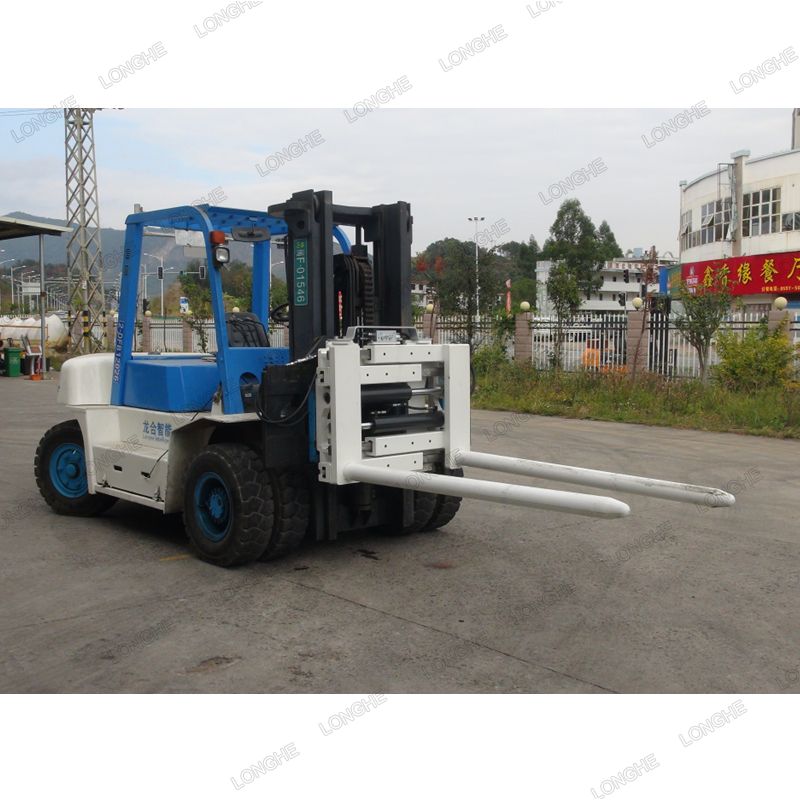

Bar arm clamp generally designed to handle rolls of cloth materials, it can transport rolls quickly and easily without damage. Attachment mainly used in the textile industry such as towels, linens and denim.

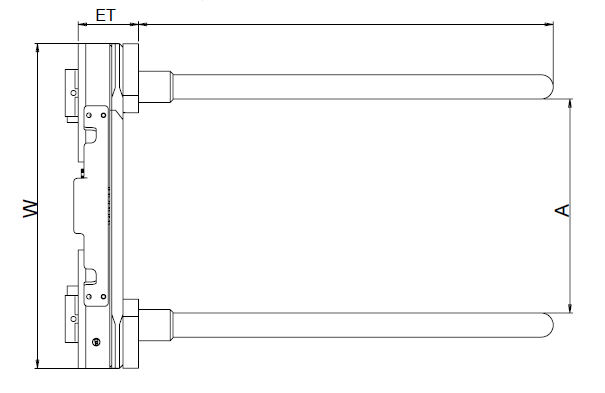

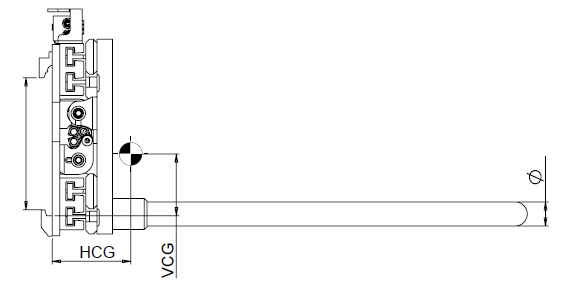

| Capacity@ Load Center | Catalog Order No. | Mounting Class | Opening Range | Frame Width | Bar Dimensions | Vertical Center of Gravity | Weight | Effective Thickness | Horizontal Center of Gravity |
| (kg@mm) | A（mm) | W(mm) | dia. x L (mm) | VCG (mm) | （kg) | ET （mm) | HCG （mm) | ||
| 1900@500 | YGC19A-B001 | Ⅱ | 240-1400 | 940 | φ70x1200 | 179 | 350 | 174 | 227 |
| 2300@600 | YGC23A-B001 | Ⅱ | 270-1410 | 940 | φ75x1070 | 204 | 420 | 186 | 197 |
| 3000@500 | YGC30A-C001 | Ⅲ | 360-1500 | 1130 | φ100x1196 | 204 | 570 | 201 | 261 |
| 5000@600 | YGC50A-C/D001 | Ⅲ/Ⅳ | 300-1300 | 1040 | φ105x2000 | 204 | 570 | 201 | 261 |
Note
1. Please contact FLT manufacture for the residual capacity of attachment
2. 2 additional hydraulic circuits required
* Further technical details are available upon request
